Shuttle NC40U Slim Mini PC, 1L Barebone – Celeron 7305, HDMI, DP, VGA, RJ45, LAN, 2xDDR4, 2.5″ HDD/SSD, VESA mount

Shuttle’s latest XPC nano NC40U series houses the performance hybrid architecture of Intel® 12th Gen Alder Lake-U platform, capable of multitasking and parallelism, and with Intel® Iris® Xe graphics for powering AI workloads, including taking the graphics and multimedia processing to a new level. Despite its 0.85L palm size design, it can accommodate one 2.5″ hard disk (up to 15mm) and enable additional M.2 SSDs or NVMe SSD installation for flexible storage capacity. Combined with rich I/Os as USB 3.2 Gen2, USB 3.2 Gen1, and Intel® Gigabit Lan, supporting triple display by the HDMI, DisplayPort, and Type-C that increase the functionality to adapt to various business computing to suit digital signage, Kiosk, edge computing, and video conference.

FORM FACTOR
Shuttle 0.85L Form Factor

PROCESSOR
Intel® 12th Gen Celeron 7305 15W CPU

MEMORY
2 x 260 pin DDR4 SODIMM slots, 32GB per DIMM (Max 64GB) Dual Channel DDR4, up to 3200Mhz

VIDEO OUTPUT
Intel® Iris Xe Graphics

AUDIO
C-Media CM6542

ETHERNET
Built in Intel I219 support 10/100/1000Mbs

STORAGE INTERFACE
Support SATA 6.0Gb/s bandwidth

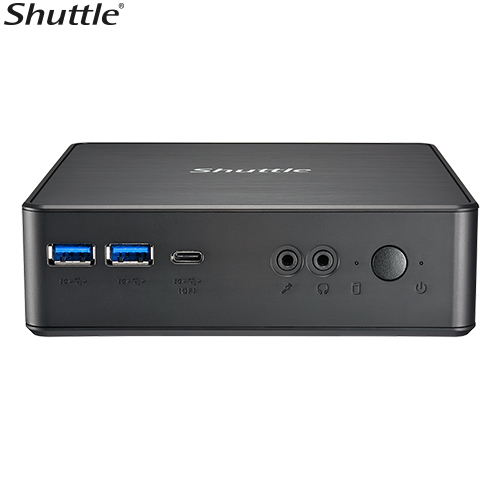

FRONT PANEL
(1) Power button
(1) Power LED
(1) HDD LED
(2) USB 3.2 Gen 1 Type A
(1)USB 3.2 Gen 1 Type C (w/DP)

BACK PANEL
(1) HDMI
(1) DisplayPort
(2) USB 3.2 gen1
(2) USB 3.2 gen2
(1) RJ45
(1) DC-in Jack
(1) Kensington Lock

DRIVE BAYS
2.5″ 15mm SATA HDD / SSD

DIMENSIONS
142(L) x 142(W) x 42(H) mm

POWER
65 Watts (19V/3.42A)

ACCESSORIES
Quick guide
DVD driver
VESA mount
Foot Stand
Adapter and power cord
screw pack

EXPANSION SLOT
M.2 2230 E key
M.2 2280 M key(w/PCIe Gen3 x 4, SATA 6 Gb/s)
M.2 2280 M key(w/PCIe Gen4 x 4)

OS SUPPORT
Windows 11
Linux

OPERATING TEMPERATURE
0℃~50℃
