Shuttle DH770 Slim Mini PC, Intel ® 14th/13th/12th Gen LGA1700 socket, 1L, H770, 2x DDR5, 2x 2.5G LAN, 2x COM, 4x USB 3.2 Gen 1, 4x USB 3.2 Gen 2, 2x

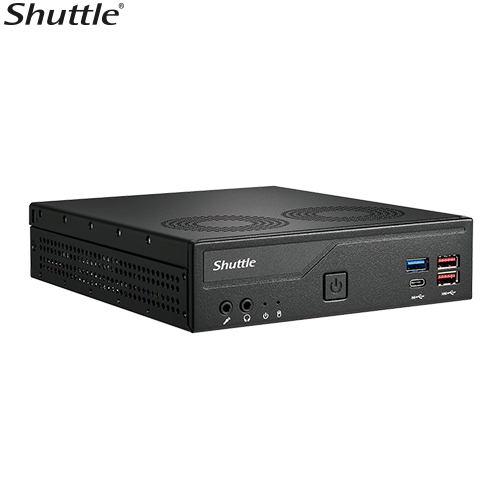

The Shuttle XPC Slim DH770 is a 1.3-liter Barebone Mini-PC featuring the H770 chipset, designed to support Intel® 12th, 13th, and 14th generation LGA1700 processors with a maximum TDP of up to 65W.
Thanks to Intel® UHD graphics and dual DDR5-5600 support, the DH770 delivers enhanced graphics performance, faster memory access, and robust multitasking capabilities. It excels in AIoT Edge tasks, crystal-clear video streaming, and various demanding applications. Its compact design houses a wide array of I/O interfaces, including HDMI 2.0, DisplayPort 1.4, USB 3.2, COM (RS232/422/485), SATA 3.0, M.2 SSD, dual 2.5G LAN, and WLAN expansion. Whether utilized for a 4-display TV wall, interactive digital signage, NVR stations, or automation control, the DH770 offers exceptional versatility and reliability across various industries.

FORM FACTOR 1.3L chassis
PROCESSOR Support Intel® 12th/13th/14th Generation Core™ i3/i5/i7/i9, Pentium®, Celeron® LGA1700 CPU max. TDP 65W
CHIPSET Intel H770 Express chipset
MEMORY 2 x DDR5 SODIMM slots,32GB per DIMM (Max 64GB)
DDR5 5600 MHz
VIDEO OUTPUT HDMI 2.0 x 2+ DisplayPort x 2, Quad video outputs
4K playback (Dual channel memory recommended)
Integrated in CPU
AUDIO Realtek ALC 888S High Definition Audio
ETHERNET (2)Intel 2.5GbE LAN
Supports 10/100/1000 Mb/Sec.
Support wake ON LAN (WOL) feature
STORAGE INTERFACE SATA 6.0Gb/s interface
NVMe interface
Support SATA RAID 0,1
ONBOARD CONNECTORS (1) 4pin fan connector
(1) VGA(For PVG01 use)
(1) 1×4 pin USB header(For WWN03 use)
(1) SATA connector w/power
(1) Front audio header
(1) Auto power on header
(1) RS232 voltage switch
FRONT PANEL (2) USB 3.2 Gen1 ports
(Include Type C x1)
(2) USB 3.2 Gen2 ports
(1) Microphone-In
(1) Line-Out
(1) Power-On button
(1) Power LED
(1) HDD LED
BACK PANEL (2) RJ45 LAN port w/LED
(2) HDMI port
(2) Display port
(2) USB 3.2 Gen1 ports
(2) USB 3.2 Gen2 ports
(1) RS232
(1) RS232/RS422/RS485
(1) External 4pin header
(1) DC-in
(2) Wireless Antenna fixture
(1) Kensington lock
DRIVE BAYS (1) 2.5′ HDD / SSD bay
DIMENSIONS 190(L) x 165(W) x 43(H) mm
Dimension drawing
POWER 120W Power Adapter
Input:100- 240V AC
19V 6.32A
ACCESSORIES XPC Multilanguage Quick User Guide
XPC DVD Driver
VESA mount
VESA Screw pack
Power cord
Thermal Grease
HDD Screw pack
120W adapter
EXPANSION SLOT (1) M.2 2280 Type M key socket
(1) M.2 2230 Type E key socket
OS SUPPORT Windows 11 64 bit O.S
Linux
REMARK RS232 ports support 0/5/12V output. Voltage setting please refer to Quick Guide.
OPERATING TEMPERATURE 0℃~50℃

More Information

Manufacturer

Shuttle

Warranty

36

Optional Accessories
