Shuttle DL30N Slim Mini PC 1L Barebone – Intel Processor N100, Fan-less, LAN, RS232/RS422/RS485, HDMI, DP, VGA, Vesa Mount, 65W Adapter

Shuttle DL30N Slim Mini PC 1L Barebone – Intel Processor N100, Fan-less, LAN, RS232/RS422/RS485, HDMI, DP, VGA, Vesa Mount, 65W Adapter

Form Factor
1.3L slim form factor

Processor
Intel® Alder lake-N up to 7W CPU
Intel® Processor® N100 (DL30N)
Intel® Processor® N200 (DL30N2)
Intel® Core i3-N300 (DL30N3)

Memory
Support DDR5 4800Mhz SODIMM memory Max. 16GB

Video Output
HDMI 2.0b + DisplayPort + VGA video output | Support triple independent display | Intel generation HD Graphic engine

Audio
2 channels High-Definition Audio

Ethernet
Intel I226-LM Dual LAN controller | Supports 10Mb/s,100Mb/s,1Gb/s,2.5Gb/s operation | Support wake ON LAN (WOL) feature

Storage Interface
SATA for HDD/SSD

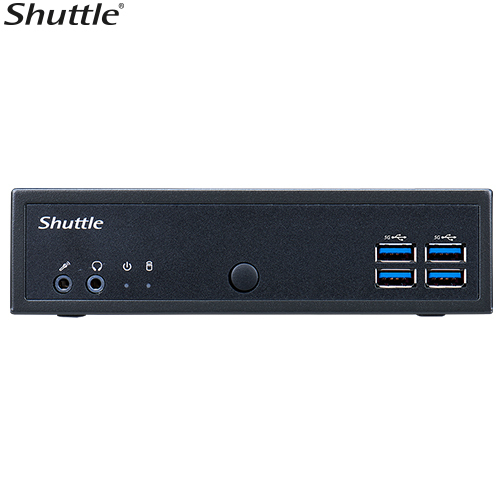

Front Panel
Power button | Power Led | HDD Led | USB 3.2 Gen1 ports | MIC-IN | Audio out

Back Panel
Intel® 2.5GbE LAN w/LED | Display port | HDMI port | USB 3.2 Gen1 ports | DC in | RS232/RS422/RS485

Expansion Slot
M.2 Type M (2280) | M.2 Type E (2230)

OS Support
Windows 11 64 bit O.S
Ubuntu
Linux O.S

More Information

Manufacturer

Shuttle

Warranty

36

Product Information

Datasheet

Optional Accessories
