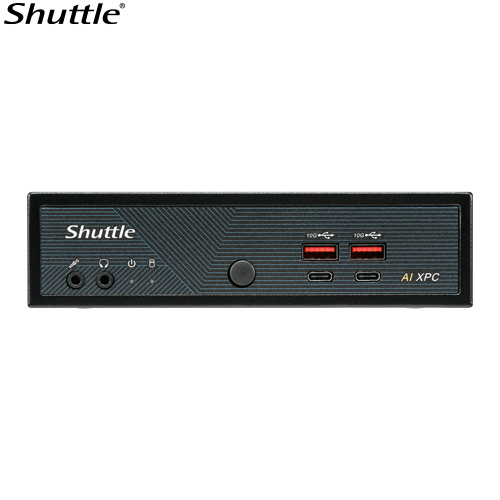

Shuttle AI XPC, Intel ® Meteor Lake Core Ultra 7 155H processor, 2x DDR5, 3x M.2 2280, 2x HDMI, 2x DP, 8x USB, 4x 2.5G LAN, 1x M.2 2230

Shuttle AI XPC, Intel ® Meteor Lake Core Ultra 7 155H processor, 2x DDR5, 3x M.2 2280, 2x HDMI, 2x DP, 8x USB, 4x 2.5G LAN, 1x M.2 2230

FORM FACTOR 1.3L chassis
PROCESSOR
Intel Core Ultra 7 155H 28W CPU
MEMORY 2 x DDR5 SODIMM slots,48GB per DIMM (Max 96GB)
DDR5 5600 MHz
VIDEO OUTPUT HDMI 2.0 x 2+ DisplayPort x 2, Quad video outputs
4K playback (Dual channel memory recommended)
Integrated in CPU
AUDIO Realtek ALC 888S High Definition Audio
ETHERNET (4)Intel 2.5GbE LAN
Support wake ON LAN (WOL) feature
STORAGE INTERFACE SATA 6.0Gb/s interface
NVMe interface
ONBOARD CONNECTORS (1) 4pin fan connector
(1) Auto power on header
FRONT PANEL (2) USB 3.2 Gen2x2 TypeC ports
(2) USB 3.2 Gen2 ports
(1) Microphone-In
(1) Line-Out
(1) Power-On button
(1) Power LED
(1) HDD LED
BACK PANEL (4) RJ45 LAN port w/LED
(2) HDMI port TMDS Compatiible
(2) Display port
(4) USB 3.2 Gen2 ports
(1) External 4pin header
(1) DC-in
(2) Wireless Antenna fixture
(1) Kensington lock
DIMENSIONS 190(L) x 165(W) x 43(H) mm
POWER 120W Power Adapter
Input:100- 240V AC
19V 6.32A
ACCESSORIES XPC Multilanguage Quick User Guide
XPC DVD Driver
VESA mount
VESA Screw pack
Power cord
120W adapter
EXPANSION SLOT (2) M.2 2280 M key socket for NVMe/SATA SSD
(1) M.2 2280 M key socket for NVMe SSD/WWN04
(1) M.2 2230 Type E key socket for WIFI
OS SUPPORT Windows 11 64 bit O.S
Linux
OPERATING TEMPERATURE 0℃~50℃

More Information

Manufacturer

Shuttle

Warranty

36
