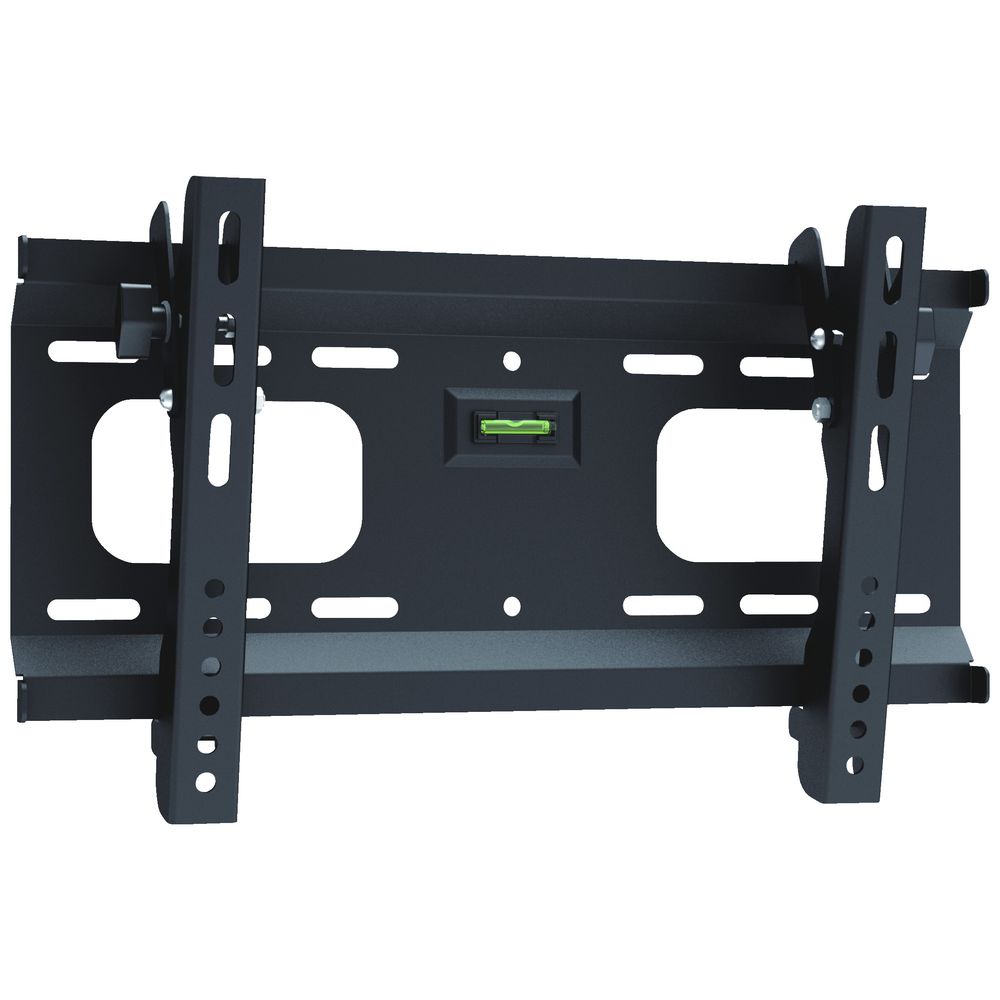

Brateck Plasma/LCD TV Ultra-Slim Tilting Wall Bracket up to 55″ w/ Spirit Level VESA 100×100/200×100/200×200/400×200 (LS)

Easy to use and install, the popular model PLB-42 is designed to fit any 32”-55” Flat Panel TV up to 75kgs/165lbs. This unit mounts in tilting position and tilts up to a 10° to position the screen for an optimal viewing experience. Integrated bubble level is included for easy installation alignment.

FEATURES
●Easy-Grip Knobs: for quick tilt and lock
●Open Architecture: provides increased ventilation and easier access to wires
●Integrated Bubble Level: assures alignment

SPECIFICATION
Product Category: Tilt TV Wall Mount
Rank: Standard
Material: Steel
Metal Sheet Thickness: Wall Plate THK=2mm cold-rolled sheet,Bracket Arm THK=2mm cold-rolled sheet (Wall Plate THK=0.079″ cold-rolled sheet,Bracket Arm THK=0.079″ cold-rolled sheet)
Surface Finish: Powder Coating
Color: Fine Texture Black
Dimensions: 46x450x270mm (1.8″x17.7″x10.6″)
Fit Screen Size: 32″-55″
Mounting Hole Pattern : VESA Universal
VESA Compatible: 100×100,200×100,200×200,400×200
Max. VESA: 400×200
Weight Capacity: 75kg (165lbs)
Strength Tested: 4 Times Approved
Profile: 46mm (1.8″)
Tilt Range: 0°~-10°
Screen Freely Tilting: Yes
Installation: Solid wall,Double Stud(406mm)
Panel Type: Detachable Panel
Wall Plate Type: Fixed Wall Plate
Cable Management: No
Anti-theft: No
Bubble Level: Built-in Bubble Level (Integrated on Wall Plate)
Certification: UL
