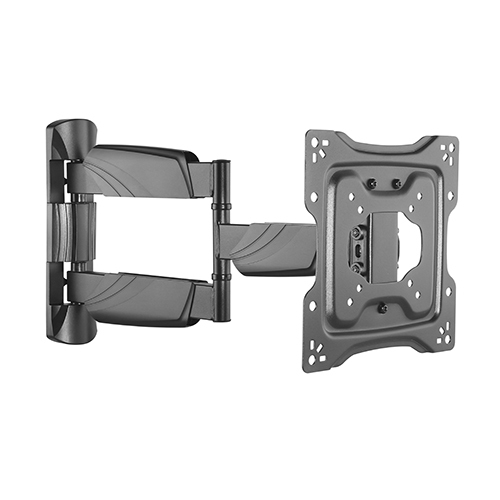

Brateck Elegant Full-Motion TV Wall Mount For 23′-42′ up to 35KG, VESA Compatible: 75×75,100×100,200×100,200×200, Fine Texture Black (LS)

Brateck Elegant Full-Motion TV Wall Mount For 23′-42′ up to 35KG

FEATURES:
●Free-Tilting Design: makes easy forward or backward adjustment for better viewing and reduced glare
●Swiveling Arm(s): offer(s) maximum viewing flexibility (makes every seat the best seat)
●Leveling adjustments: allow TV to be perfectly positioned after hanging
●Cable Management: keeps everything organized

SPECIFICATIONS
Product Category: Full-motion TV Wall Mount
Rank: Standard
Material: Steel,Plastic
Metal Sheet Thickness: VESA Panel THK=1.8mm cold-rolled sheet,Wall Plate THK=2.5mm pickling sheet (VESA Panel THK=0.071′ cold-rolled sheet,Wall Plate THK=0.098′ pickling sheet)
Pipe Size: 40x20x1.5mm (1.6’x0.79’x0.059′)
Surface Finish: Powder Coating
Color: Fine Texture Black
Dimensions: 224x292x510mm (8.8’x11.5’x20.1′)
Fit Screen Size: 23′-42′
Fit Curved TV: No
Mounting Hole Pattern: VESA Only
VESA Compatible: 75×75,100×100,200×100,200×200
Max. Mounting Hole: 200×200
Weight Capacity: 35kg (77lbs)
Strength Tested: 4 Times Approved
Profile: 45~510mm (1.8’~20.1′)
Tilt Range: ＋5°～-15°
Swivel Range: +90°~-90°
Screen Level: +3°~-3°
Screen Freely Tilting: No
Installation: Solid Wall,Single Stud
Panel Type: Detachable Panel
Wall Plate Type: Fixed Wall Plate
Cable Management: Yes
Anti-theft: No
Bubble Level: No
Accessory Kit Package: Normal/Ziplock Polybag,Compartment Polybag
Certification: UL

More Information

Manufacturer

Brateck

Warranty

60

Optional Accessories

Available exclusively from Go Tech Deals – Melbourne-based tech retailer offering fast Australia-wide delivery
