ViewSonic 24” TD2455 In-Cell 10 Point Touch Monitor with USB Type-C Input and Advanced Ergonomics, POS, Education. Shopping Centre, Real Estate, TAB

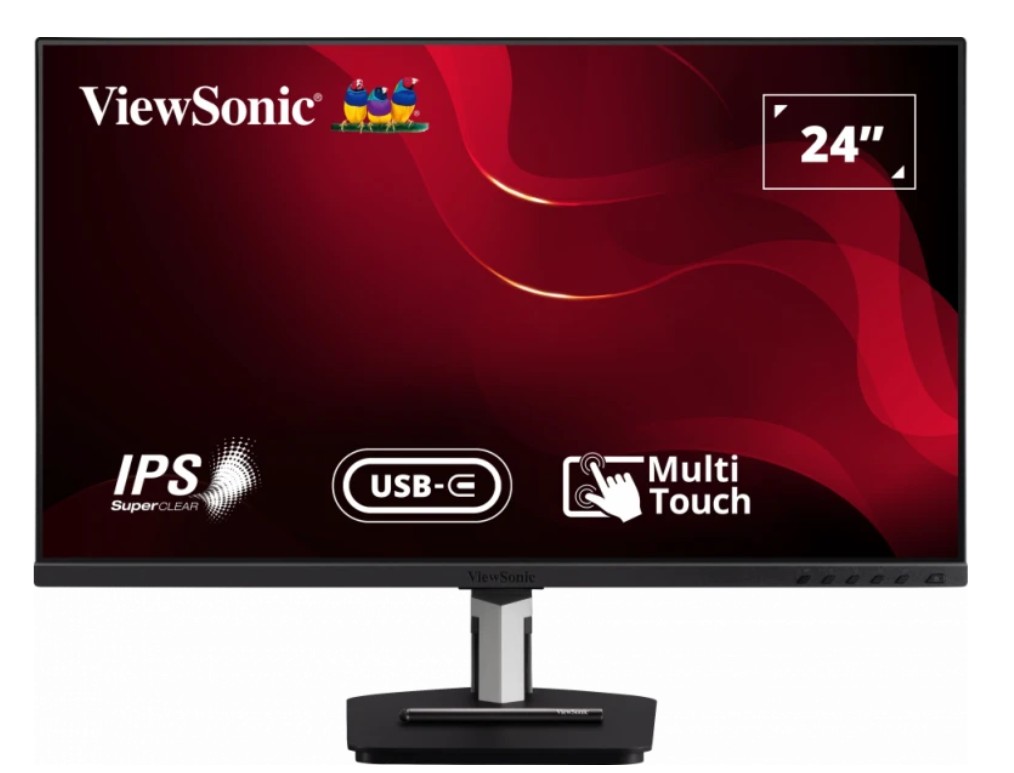

24” In-Cell Touch Monitor with USB Type-C Input and Advanced Ergonomics

Versatile touch applications
Efficient multitasking
Touch annotation for presentations
Accurate yet smooth touch experience
Comfortable working angles quickly start your work
Touch support with Windows, Android, Chrome, Linux and Raspberry Pi

Display
Display Size (in.): 24
Viewable Area (in.): 23.8
VESA 75 x 75
Panel Type: IPS Technology
Resolution: 1920 x 1080
Resolution Type: FHD (Full HD)
Static Contrast Ratio: 1,000:1 (typ)
Dynamic Contrast Ratio: 50M:1
Light Source: LED
Brightness: 250 cd/m² (typ)
Colors: 16.7M
Color Space Support: 8 bit (6 bit + A-FRC)
Aspect Ratio: 16:9
Response Time (Typical GTG): 6ms
Response Time (GTG w/OD): 6ms
Viewing Angles: 178º horizontal, 178º vertical
Backlight Life (Hours): 30000 Hrs (Min)
Curvature: Flat
Refresh Rate (Hz): 60
Blue Light Filter: Yes
Flicker-Free: Yes
Color Gamut: NTSC: 72% size (Typ)
sRGB: 102% size (Typ)
Pixel Size: 0.275 mm (H) x 0.275 mm (V)
Touch Screen: Projected Capacitive, 10-point multi-touch
Surface Treatment: Anti-Glare, Hard Coating (3H)

Compatibility
PC Resolution (max): 1920×1080
Mac® Resolution (max): 1920×1080
PC Operating System: Windows 7/8/8.1/10/11 certified; macOS tested
Mac® Resolution (min): 1920×1080

Connector
USB 3.2 Type A Down Stream: 2
USB 3.2 Type B Up Stream: 1
USB 3.2 Type C Up Stream; DisplayPort Alt mode : 1 (60W power charger)
3.5mm Audio Out: 1
HDMI 1.4: 1
DisplayPort: 1
DisplayPort Out: 1
Power in: 3-pin Socket (IEC C14 / CEE22)

Audio
Internal Speakers: 2Watts x2

Power
Eco Mode (Conserve): 9.7W
Eco Mode (optimized): 12.8W
Consumption (typical): 17.9W
Consumption (max): 20.4W
Voltage: AC 100-240V
Stand-by: 0.3W
Power Supply: Internal Power Supply

Additional Hardware
Kensington Lock Slot: 1

More Information

Manufacturer

ViewSonic

Warranty

36

Product Information

Datasheet

Optional Accessories
