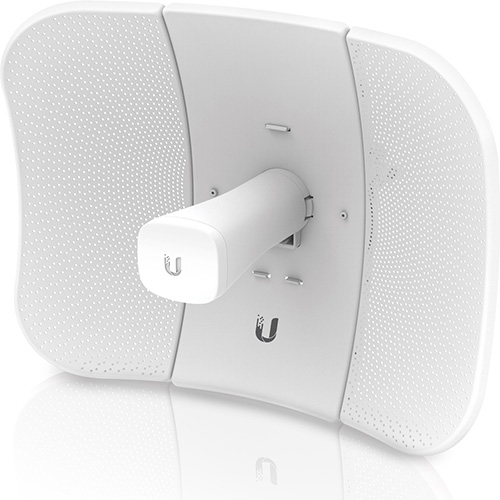

Ubiquiti airMAX LiteBeam AC 5 GHz Long-Range Station, 450+ Mbps Throughput, 23dBi Gain Antenna, 15+ Km Range,Inludes PoE Injector

Now with airOS®8 and airView®
airOS®8 provides powerful features, including airMAX ac protocol support, real-time RF analytics, and an all-new design for enhanced usability.

High-Gain, Directional Antenna
The LiteBeam AC provides 23 dBi of gain for long-distance connectivity and uses a directional antenna pattern for improved noise immunity.

Breakthrough Industrial Design
Featuring the freedom of three-axis alignment, the LiteBeamM fully assembles in seconds – no tools needed. Only a single wrench is required for pole-mounting.

Compact in Size, Light in Weight
A lightweight form factor contained within ultra-compact packaging, the LiteBeam AC is ideal for shipping and logistics.

SPECIFICATION
Processor Specs: MIPS 74Kc
Memory: 64 MB DDR2
Operating Frequency: 2400 – 2483.5 5150 – 5875
Net. Interface: (1) 10/100/1000 Ethernet Port
Max. TX Power: 25 dBm
Gain: 23 dBi
Max. Power Consumption: 7W
Dimensions: 358 x 271.95 x 272.50 mm
Weight: 800 g (1.76 lb)
Power Supply: 24V, 0.3A Gigabit PoE Adapter (Included)
Power Method: Passive PoE (Pairs 4, 5+; 7, 8 Return)
Operating Temperature: -40 to 70° C (-40 to 158° F)
Operating Humidity: 5 to 95% Noncondensing

More Information

Manufacturer

Ubiquiti

Warranty

12

Product Information

Datasheet

Optional Accessories

NHU-EXTWAR-UBNT-2YR, NHU-EXTWAR-UBNT-3YR, NHU-EXTWAR-UBNT-5YR, NHU-POE-24-7W
