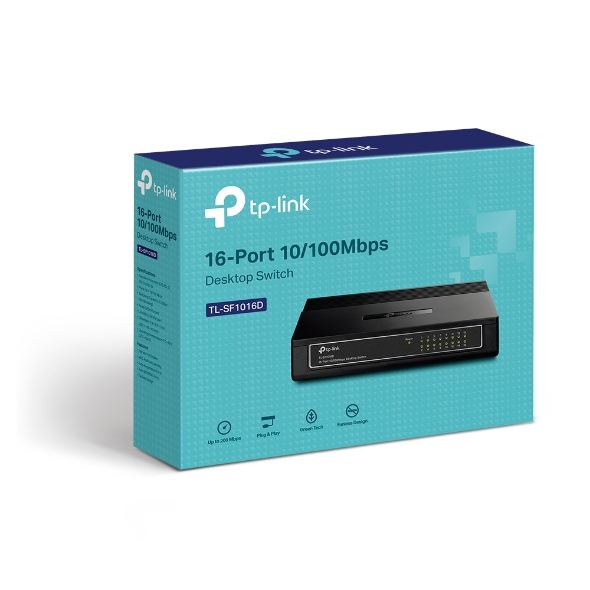

TP-Link TL-SF1016D 16-Port 10/100Mbps Desktop Switch or wall-mounting design Plug and play 3.2Gbps Switching Capacity Auto-MDI/MDIX Supports MAC

16 10/100Mbps Auto-Negotiation RJ45 ports, Supports Auto MDI / MDIX
Green Ethernet technology saves the power up to 80%
IEEE 802.3x flow control provides reliable data transfer
Plastic case, desktop or wall-mounting design
Plug and play, no configuration required

HARDWARE FEATURES
Interface 16× 10/100 Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX
Fan Quantity Fanless
Physical Security Lock No
External Power Supply External Power Adapter(Output: 5.0VDC / 0.6A)
Mac Address Table 2K
Dimensions ( W x D x H ) 7.9*5.6*1.6 in. (200*142*40 mm)
Max Power Consumption 3.23 W (220V/50Hz)
Max Heat Dissipation 11.01 BTU/h

SOFTWARE FEATURES
Transfer Method Store and Forward
Advanced Functions Green Technology,
802.3X Flow Control,

OTHERS
Certification FCC, CE, RoHs
Package Contents 16-Port 10/100Mbps Desktop Switch TL-SF1016D
Power Adapter
User Guide
System Requirements Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7, MAC® OS, NetWare®, UNIX® or Linux.
