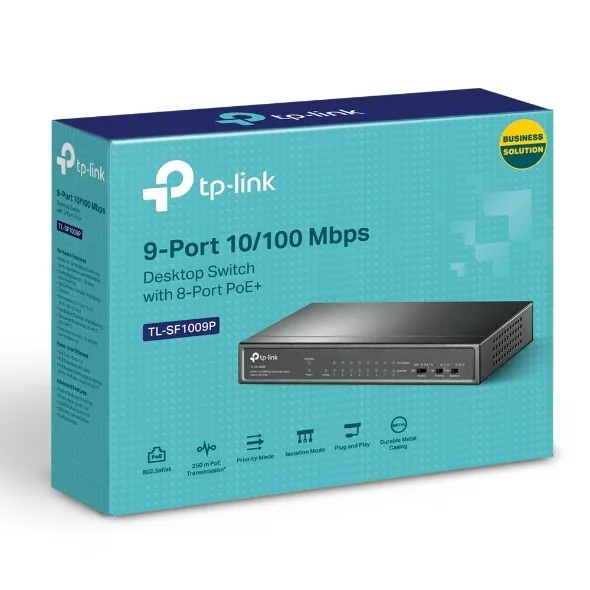

TP-Link TL-SF1009P 9-Port 10/100Mbps Desktop Switch with 8-Port PoE+, Up to 65W for 8 PoE ports, Up to 30W for each PoE port

TP-Link TL-SF1009P 9-Port 10/100Mbps Desktop Switch with 8-Port PoE+

• 9× 10/100 Mbps RJ45 ports
• 8× PoE+ ports transfer data and power on individual cables
• Works with IEEE 802.3af/at compliant PDs
• Supports PoE Power up to 30 W for each PoE port
• Supports PoE Power up to 65 W for 8 PoE ports*
• Up to 250 m data and power transmitting range under Extend Mode**
• Priority Mode ensures high priority of ports 1–2 to guarantee the quality of sensitive application
• Isolation Mode allows one-click client traffic separation for higher security and performance
• Plug and play with no configuration required

HARDWARE FEATURES
Interface • 9× 10/100 Mbps RJ45 Ports (8× 10/100 Mbps 802.3af/at PoE+ ports)
• AUTO Negotiation
• AUTO MDI/MDIX
Network Media • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
Fan Quantity Fanless
Physical Security Lock Yes
External Power Supply External Power Adapter (Output: 53.5VDC / 1.31A)
Packet Forwarding Rate 1.3392 Mpps
PoE Ports (RJ45) • Standard: 802.3 af/at compliant
• PoE Ports: Ports 1–8
• Power Supply: 65 W
Mac Address Table 2K
Jumbo Frame 2 KB
Switching Capacity 1.8 Gbps
Dimensions ( W x D x H ) 6.7 × 3.9 × 1.1 in (171 × 98 × 27 mm)
Max Power Consumption • 3.6 (220/50 Hz. no PD connected)
• 77.08 (220/50 Hz. with 65 W PD connected)
Max Heat Dissipation • 12.28 BTU/h (no PD connected)
• 262.84 BTU/h (with 65 W PD connected)
SOFTWARE FEATURES
Transmission Method Store-And-Forward
Advanced Functions • Compatible With IEEE 802.3af/at Compliant PDs
• Extend Mode Button (Ports 1–4 and Ports 1–8, Up to 250 m PoE power supply and data transmission)
• Priority Mode Button (Ports 1–2)
• Isolation Mode Button (Ports 1–8)
• Mac Address Auto-Learning and Auto-Aging
• IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure for Half-Duplex Mode
