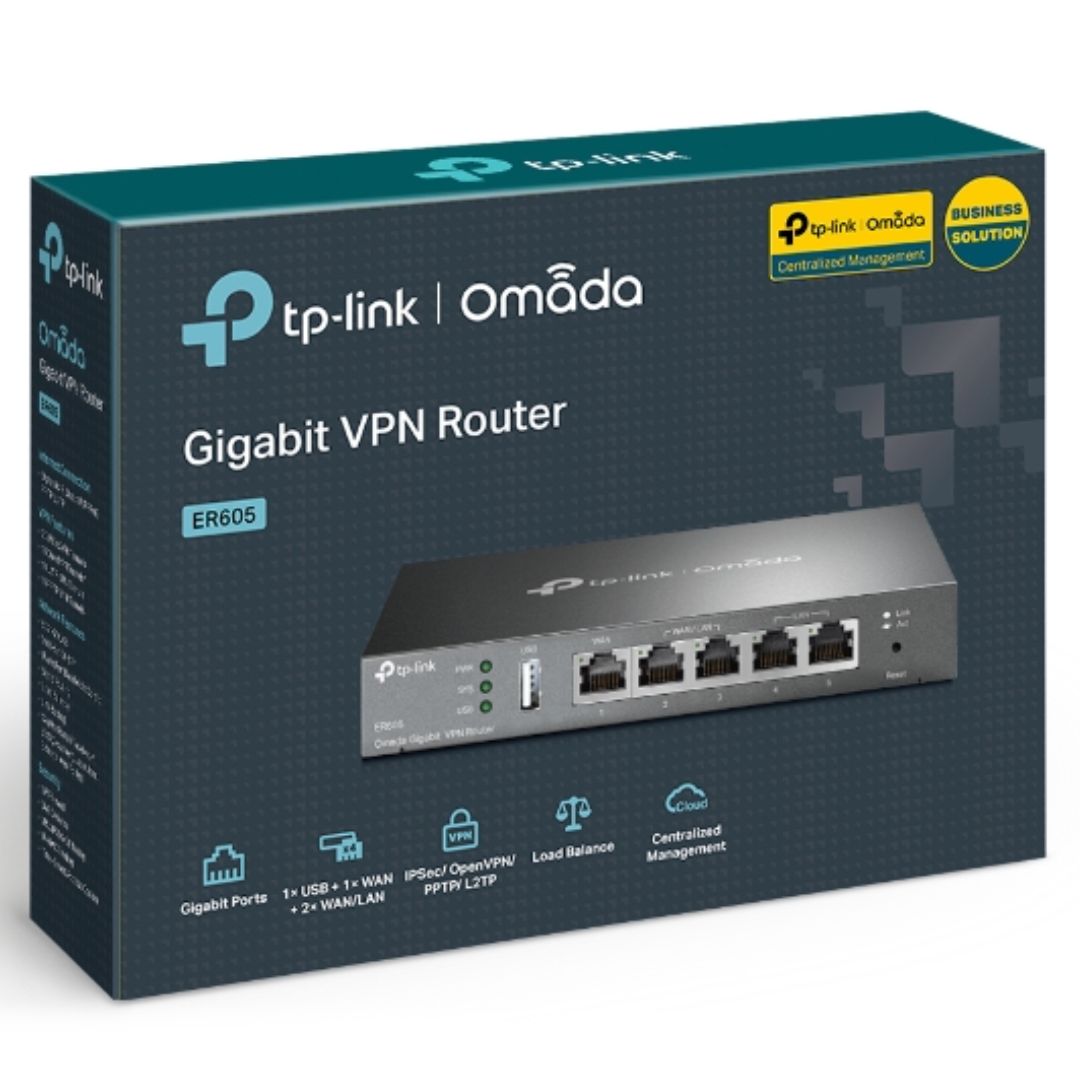

TP-Link TL-ER605 (TL-R605) SafeStream Gigabit Multi-WAN VPN Router PPPoE 1 WAN 3 Changeable WAN/LAN Ports 10BASE-T, Centralised Cloud, Omada

TP-Link TL-ER605 (TL-R605) SafeStream Gigabit Multi-WAN VPN Router PPPoE 1 WAN 3 Changeable WAN/LAN Ports 10BASE-T, Centralised Cloud, OMADA

• Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)‡, Centralized Cloud Management, and Intelligent Monitoring.
• Centralised Management: Cloud access and Omada app for ultra convenience and easy management.
• Five Gigabit Ports: High-speed wired connectivity.
• Up to 4 WAN Ports: 1 gigabit WAN port and 3 gigabit WAN/LAN ports optimize bandwidth usage.
• Highly Secure VPN: Supports up to 20× LAN-to-LAN IPsec, 16× OpenVPN*, 16× L2TP, and 16× PPTP VPN connections.
• Abundant Security Features: Advanced firewall policies, DoS defence,IP/MAC/URL filtering, and more security functions protect your network and data.

HARDWARE FEATURES
Standards and Protocols • IEEE 802.3, 802.3u, 802.3ab, IEEE 802.3x, IEEE 802.1q
• TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, SNMP
Interface • 1 Fixed Gigabit WAN Port
• 1 Fixed Gigabit LAN Port
• 3 Changeable Gigabit WAN/LAN Ports
Network Media • 10BASE-T: UTP category 3, 4, 5 cable (Max 100m)
EIA/TIA-568 100Ω STP (Max 100m)
• 100BASE-TX: UTP category 5, 5e cable (Max 100m)
EIA/TIA-568 100Ω STP (Max 100m)
• 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100m)
Button Reset Button
Power Supply External 9V/0.85A DC Adapter
Flash SPI 16MB
DRAM 128 MB
LED PWR, SYS, WAN, LAN
Dimensions ( W x D x H ) 6.2 × 4.0 × 1.0 in (158 × 101 × 25mm)

PERFORMANCE
Concurrent Session 25,000
IPsec VPN Throughput 41.5 Mbps
BASIC FUNCTIONS
WAN Connection Type • Static/Dynamic IP
• PPPoE
• PPTP
• L2TP
DHCP • DHCP Server/Client
• DHCP Address Reservation
• Multi-net DHCP*
• Multi-IP Interfaces*

*Multi-IP Interfaces and Multi-Net DHCP are supported only in Controller Mode
MAC Clone Modify WAN/LAN MAC Address*

More Information

Manufacturer

TP-LINK

Warranty

60

Product Information

Datasheet

Optional Accessories

NHTL-OC200, NHTL-OC300, CSP-LIC-OCC-1YR, CSP-LIC-OCC-3YR, CSP-LIC-OCC-5YR
