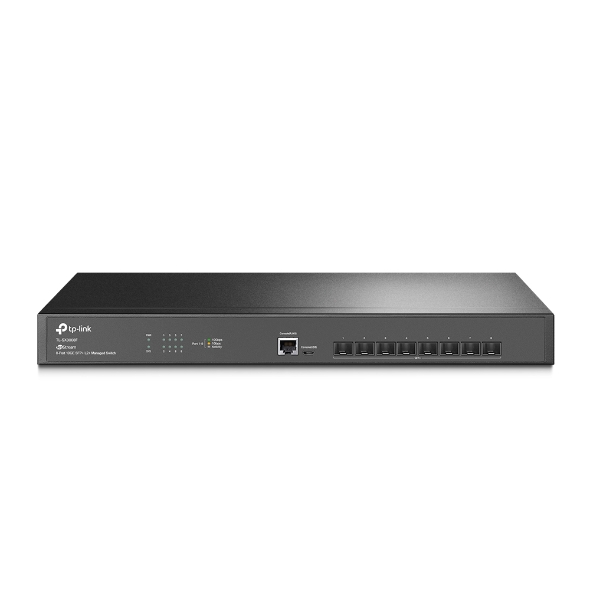

TP-Link SX3008F JetStream 8-Port 10GE SFP+ L2+ Managed Switch, SFP+, Omada SDN, Static Routing, L2/L3/L4 QoS, IGMP snooping, Standalone Management

TP-Link TL-SX3008F JetStream 8-Port 10GE SFP+ L2+ Managed Switch, SFP+, Omada SDN, Static Routing, L2/L3/L4 QoS, IGMP snooping, Standalone Management

JetStream 8-Port 10GE SFP+ L2+ Managed Switch
10G Lightning-Fast Connections: 8× 10 Gbps SFP+ Ports enable high-bandwidth connectivity and non-blocking 160 Gbps switching capacity.
Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)*, Centralized Cloud Management, and Intelligent Monitoring.
Centralised Management: Easy and convenient management with cloud access and Omada app.
Static Routing: Route internal traffic for the efficient use of network resources.
Robust Security Strategies: Keep your data safe with systems including IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, and Radius Authentication.
Voice and Video Application Optimization: L2/L3/L4 QoS and IGMP snooping.
Standalone Management: Web, CLI (Console Port, Telnet, SSH), SNMP, RMON, and Dual Image bring powerful management capabilities
HARDWARE FEATURES
Interface • 8× 10GE SFP+ Slots
• 1× RJ45 Console Port
• 1× Micro-USB Console Port
Fan Quantity Fanless
Power Supply 100-240 V AC~50/60 Hz
Dimensions ( W x D x H ) 17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm)
Mounting Rack Mountable
Max Power Consumption 15.46 W (220 V / 50 Hz)
Max Heat Dissipation 52.75 BTU/hr (220 V / 50 Hz)
PERFORMANCE
Switching Capacity 160 Gbps
Packet Forwarding Rate 119.04 Mpps
MAC Address Table 32 K
Jumbo Frame 9 KB
SOFTWARE FEATURES
Quality of Service • 8 priority queues
• 802.1p CoS/DSCP priority
• Queue scheduling
– SP (Strict Priority)
– WRR (Weighted Round Robin)
– SP+WRR
• Bandwidth Control
– Port/Flow based Rating Limiting
• Smoother Performance
• Action for Flows
– Mirror (to supported interface)
– Redirect (to supported interface)
– Rate Limit
– QoS Remark
L2 and L2+ Features • Link Aggregation
– static link aggregation
– 802.3ad LACP
– Up to 8 aggregation groups, containing 8 ports per g

More Information

Manufacturer

TP-LINK

Warranty

60

Product Information

Datasheet

Optional Accessories

NHTL-OC200, NHTL-OC300, CSP-LIC-OCC-1YR, CSP-LIC-OCC-3YR, CSP-LIC-OCC-5YR
