Shuttle Xh270 Slim Mini Pc 3l

FORM FACTOR Mini-ITX MB
3L chassis
PROCESSOR Support Skylake-S/Kabylake-S 65W CPU
CHIPSET Intel H270 Express Chipset
MEMORY (2)DDR4 SO-DIMM 2133/2400MHz support, dual channel up to 32GB (16GB*2)
VIDEO OUTPUT (1)HDMI+(1)DisplayPort+(1)VGA support triple independent display 4K playback
Integrated in CPU
AUDIO Realtek ALC662 5.1 channel High Definition audio
ETHERNET Intel I211*2 10Mb/100Mb/1Gb/s operation
Support Wake-on-LAN function
Support Teaming feature
STORAGE INTERFACE SATA 6.0Gb/s interface
ONBOARD CONNECTORS (1) 4pin fan connector
(4) SATA connector w/power
(2) 2×5 pin USB2.0 header
(1) Front audio header
(1) Front USB2.0 header
(1) Front USB3.0 header
(1) Auto power on
(1) RS232 header
FRONT PANEL (1) Power Button
(1) Power Led
(1) HDD Led
(2) USB2.0 port
(2) USB3.0 port
(1)MIC-In
(1)Earphone-Out
BACK PANEL (2) RJ45 Gigabit LAN port
(1) DisplayPort
(1) HDMI
(1) VGA
(2) USB2.0 port
(2) USB3.0 port
(1) RS232
(1) Line-in port
(1) Line out port
(1) MIC-in port
(1) Clear CMOS button
(1) DC in
(1)Kensington lock
(2)Wireless Antenna fixture(optional)
DRIVE BAYS Support 4* 2.5” HDD/SSD
DIMENSIONS 240(L) x 200(W) x 72(H) mm
Dimension drawing
POWER 120W Power Adapter
Input:100- 240V AC
Output: 19V 6.32A DC
ACCESSORIES XPC Multilanguage Quick User Guide
XPC DVD Driver
Thermal Grease
120W adapter
2.5 HDD rack*4
Power cord
HDD Screw pack
EXPANSION SLOT (1) M.2 2280 Type M (PCIe x4,SATA 6GB/s)
(1) M.2 2230 Type A,E (PCIe x1,USB2.0)
OS SUPPORT Windows 7(SKL-S only)
Windows 10
Linux

More Information

Manufacturer

Shuttle

Warranty

36

Product Information

Datasheet

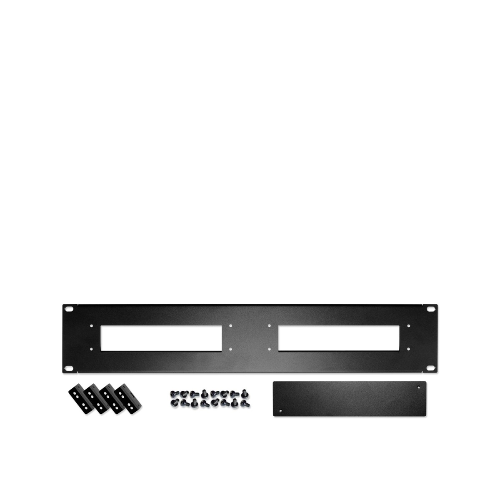

Optional Accessories
