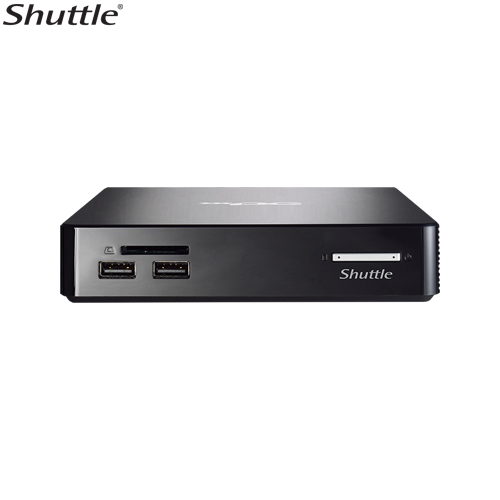

Shuttle Ns02av2 Mini Pc 0.5l

Shuttle NS02AV2 Mini PC 0.5L System-Rockchip RK3368, 2GB RAM, 16GB eMMC, LAN, 4xUSB, WIFI+BT, VESA, HDMI, Android 8.1, Free Digital Signage Software

Form Factor
Shuttle 0.57L

Processor
Rockchip RK3368 Octa core A53 1.5GHz Max.

Memory
4GB or 2GB On Board

Video Output
HDMI 2.0

Ethernet
Realtek Gigabit LAN 802.11 a/b/g/n/ac with BT 5.0

Storage Interface
eMMC 16GB or 32GB on board Optional 2.5″ 7mm SATA Interface HDD Support

Front Panel
1x Power Button
1x Power LED
1x HDD LED
1x USB 2.0
1x SD Card Reader

Back Panel
1x HDMI Out
2x USB 2.0
1x Ethernet Optional – POE Support
1x Headphone/MIC Combo jack
1x DC-In
1x 2 pin Remote Power Control Pin Header
1x 2 pin Recovery Pin Header
1x Kensington Lock

Dimensions
141x141x29mm

Power
Automatics Voltage adjustment between 100 and 240VAC 50/60Hz
Wall mount type, 12V/2A, 24W(LEVEL 6)

Accessories
VESA mount

Expansion Slot
PHD5 2.5″ HDD Expansion Frame (Optional)

OS Support
Android 8.1 Preinstalled

More Information

Manufacturer

Shuttle

Warranty

36

Product Information

Datasheet

Optional Accessories
