PNY GeForce RTX™ 16GB GDDR6X TF VERTO Triple Fan 9728 Cude Cores 23Gbps 2205/2505 Mhz 3x DP 1x HDMI 2.1

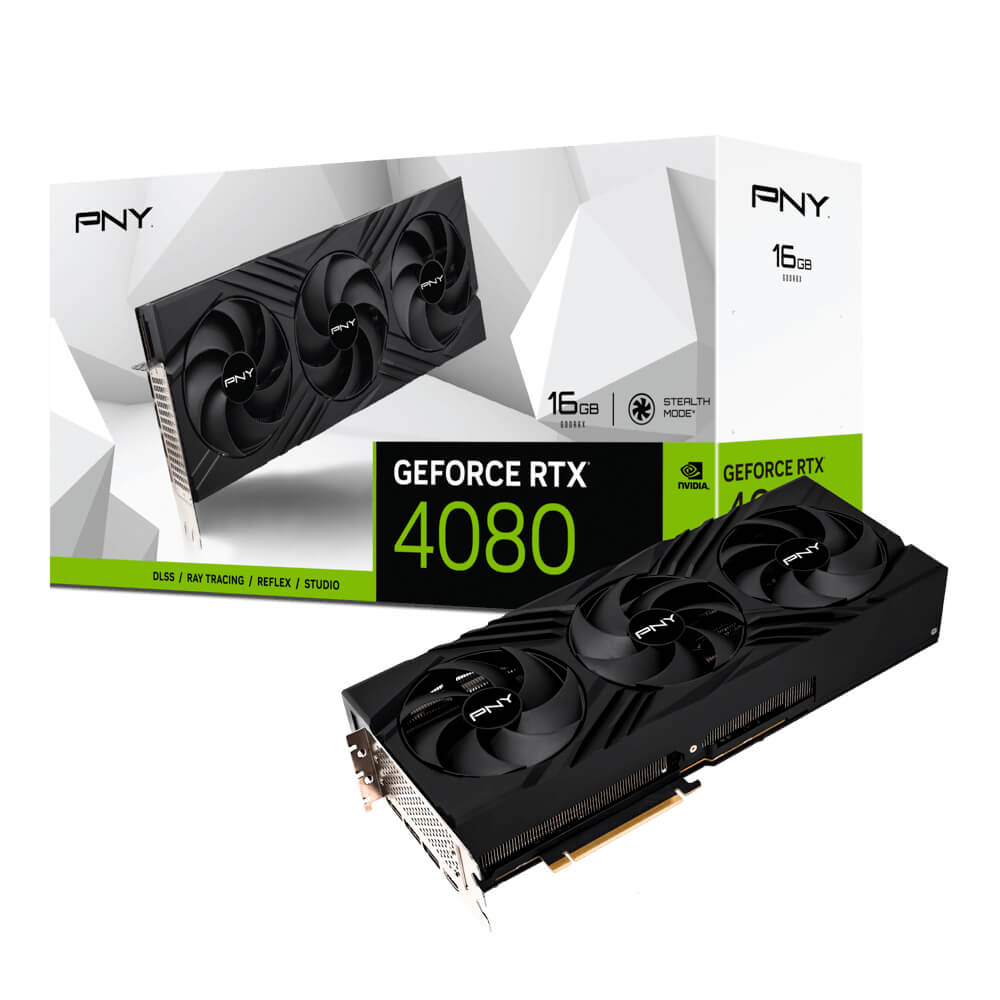

PNY Nvidia GeForce RTX 4080 16GB GDDR6X TF VERTO Triple Fan 9728 Cude Cores 23Gbps 2205/2505 Mhz 3x DP 1x HDMI 2.1

The NVIDIA® GeForce RTX® 4080 is the ultimate GeForce GPU. It brings an enormous leap in performance, efficiency, and AI-powered graphics. Experience ultra-high performance gaming, incredibly detailed virtual worlds, unprecedented productivity, and new ways to create. It’s powered by the NVIDIA Ada Lovelace architecture and comes with 16 GB of G6X memory to deliver the ultimate experience for gamers and creators.

Thermal Module
Fans: 3x 100mm double ball bearing offers 70,000+hours lifespan
Giant Heatsink: Dense fins greatly increase the heat dissipation area
8x Heatpipes: 8x Φ=6mm heatpipes to conduct heat to the fin
Copper Base: Direct contact with GPU to efficiently transfer heat
Stamping Backplate
Metal Backplate strengthens the graphics card structure to prevent sag. Aluminum to accelerate heat transformation
Air Vents to allow airflow to heat dissipation

Specification
Card Dimensions: 340.42 x 142.9 x 59.41mm; 3 Slot
Box Dimensions: 405 x 199 x 103mm
NVIDIA® CUDA Cores: 9728
Clock Speed: 2205 MHz
Boost Speed: 2505 MHz
Memory Speed: 23Gbp
Memory Size: 16GB GDDR6X
Memory Interface: 256-bit
Memory Bandwidth(GB/sec): 736
TDP: 320 W
NVLink: Not Supported
Outputs: DisplayPort 1.4 (x3), HDMI 2.1
Multi-Screen: 4
Resolution: 7680 x 4320 @120Hz (Digital)
Power Input: One 16-Pin (One 16-pin to Three 8-pin)
Bus Type: PCI-Express 4.0 x16
Warranty: 3 Years
Accessories: PCIe5 12VHPWR Adapter VGA Support Kits
