PANORAMA BRACKET MOUNT ANTENNA 617-960/1710-6000MHz 5m SMA(m) Wall, Mast or Panel Mount, 4G/5G LTE Covering 600-6000MHz

PANORAMA BRACKET MOUNT ANTENNA 617-960/1710-6000MHz 5m SMA(m) Wall, Mast or Panel Mount, 4G/5G LTE Covering 600-6000MHz

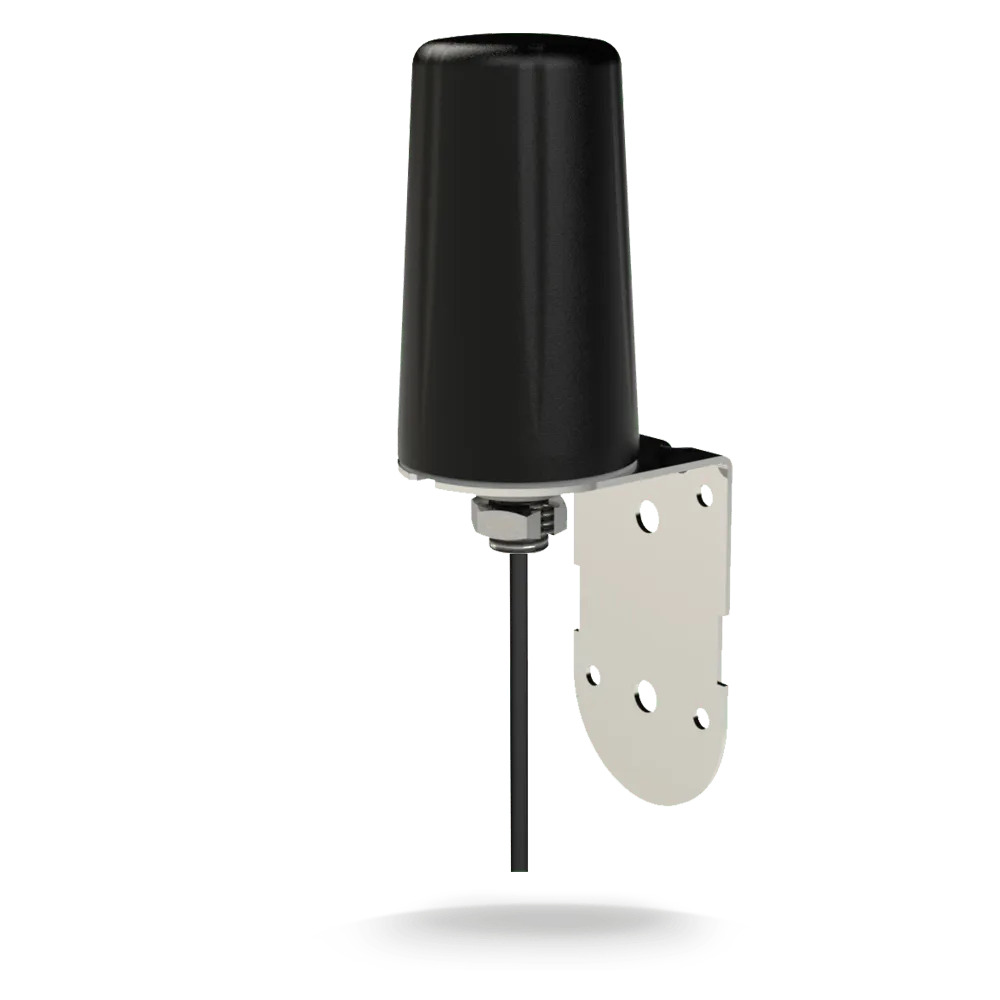

The Panorama B4BE is a robust bracket mount antenna for LTE, M2M, and IoT applications.
The B4BE range has been designed to provide cost-effective coverage booster antennas for 2G/3G/4G and 5G devices. The antennas are designed for wall or mast mounting and are weatherproof which allows the device to reap the benefits of an antenna mounted in an elevated or external location where the signal is strongest. The Omni-directional radiation pattern allows the antenna to be quickly installed while the global Cellular/GSM/LTE coverage provided by the antenna allows it to be utilised for 2G/3G 4G applications the world over.

Integrated Low Loss Cable
5dBi Peak Gain Performance
UV Stable IP Rated

ELECTRICAL DATA
Pattern Omnidirectional
Max Input Power(W) 30
Frequency Range | Gain 617 – 960MHz | 2dBi; 1710 – 2700MHz | 3.5dBi; 3400 – 3800MHz | 5dBi
Operating Temperature -40°/ +80°C (-40.0°/ +176.0°F); -40°/ +85°C (-40.0°/ +185.0°F)
Cellular LTE Elements SiSo
WIFI Elements No
UHF Elements No
GPS DATA
Number of GPS Elements No
Cable Type (LTE) CS29
Connector (LTE) SMA (m)
IP Rating IP66
Material Flammability UL746C F2, UL 94-HB
Technology 4G/5G; 5G; 2G/3G; 2G/3G/4G; Band 71 600MHz ready

More Information

Manufacturer

PANORAMA

Warranty

12
