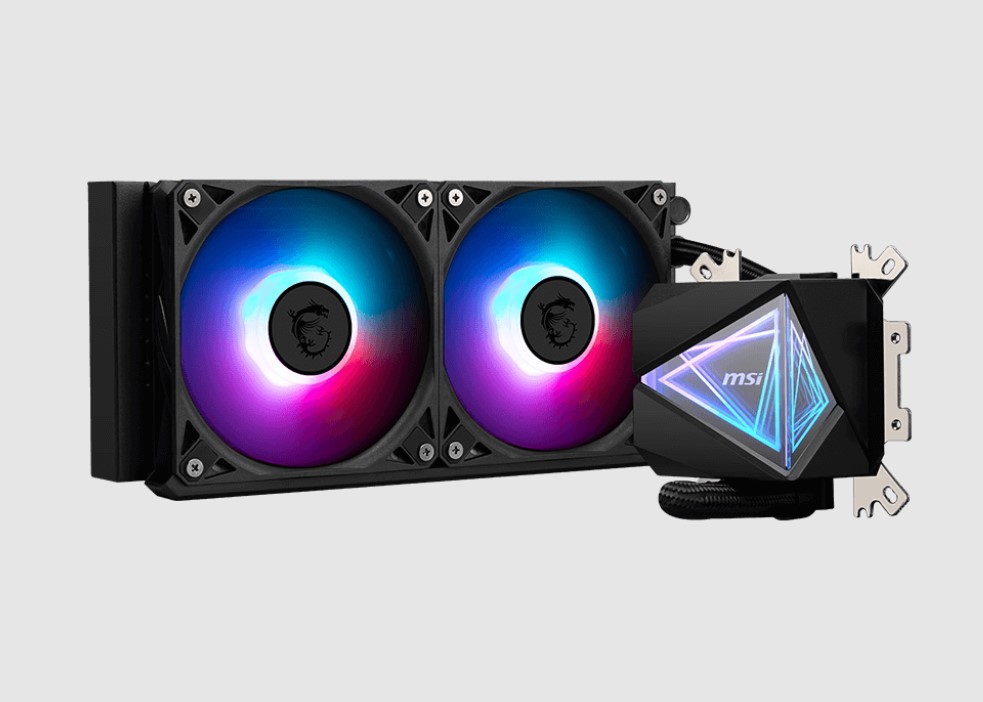

MSI MAG CORELIQUID I240 BlackLiquid CPU Cooler, LGA 1150/1151/1155/1156/1200/1700+ Next gen AM5/AM4 3y warranty

MSI MAG CORELIQUID I240 BlackLiquid CPU Cooler, LGA 1150/1151/1155/1156/1200/1700+ Next gen AM5/AM4 3y warranty

SPECIFICATIONS

RADIATOR SIZE
240 mm

RADIATOR DIMENSIONS (WXDXH
277 x 119.2 x 27mm / 10.91 x 4.69 x 1.06 inches

RADIATOR MATERIAL
Aluminum

WATER COOLING TUBE MATERIAL
EPDM

NUMBER OF FANS
2

FAN DIMENSIONS (WXDXH)
120 x 120 x 25mm / 4.7 x 4.7 x 0.98 inches

FAN AIR FLOW
70.7 CFM

FAN BEARING
Loop Dynamic Bearing(LDB)

FAN LIFE EXPECTANCY
30,000 hrs@40℃

FAN RATED CURRENT
0.2A(Max:0.3A)

FAN POWER CONSUMPTION
2.4W(Max:3.6W)

PWM MODE
YES

CABLE LENGTH (PWM CABLE)
550 / 500 mm; 21.65 / 19.69 inches

FAN CONNECTOR
5V ARGB 3-PIN Header
PWM 4-PIN Heade

FAN LIGHTING
ARGB Gen2

PUMP LIFE EXPECTANCY
500,000 hours in typical use

PUMP NOISE LEVEL
20 dBA (avg.)

PUMP RATED CURRENT
0.32A (Max: 0.5A)

PUMP POWER CONSUMPTION
3.84W (Max: 6W)

PUMP SPEED
3400 RPM ± 10%

PUMP CONNECTOR
PWM 4-PIN Header
5V ARGB 3-PIN Header ( Female )
5V ARGB 3-PIN Header ( male )

COLD PLATE MATERIAL
Copper

BLOCK DIMENSIONS (WXDXH)
69.1 x 74 x 62.45 mm

NTEL SOCKET SUPPORT
LGA 1150/1151/1155/1156/1200/1700 + Next gen

AMD SOCKET SUPPORT
AM5/AM4

ACCESSORIES
Thermal paste x 1
