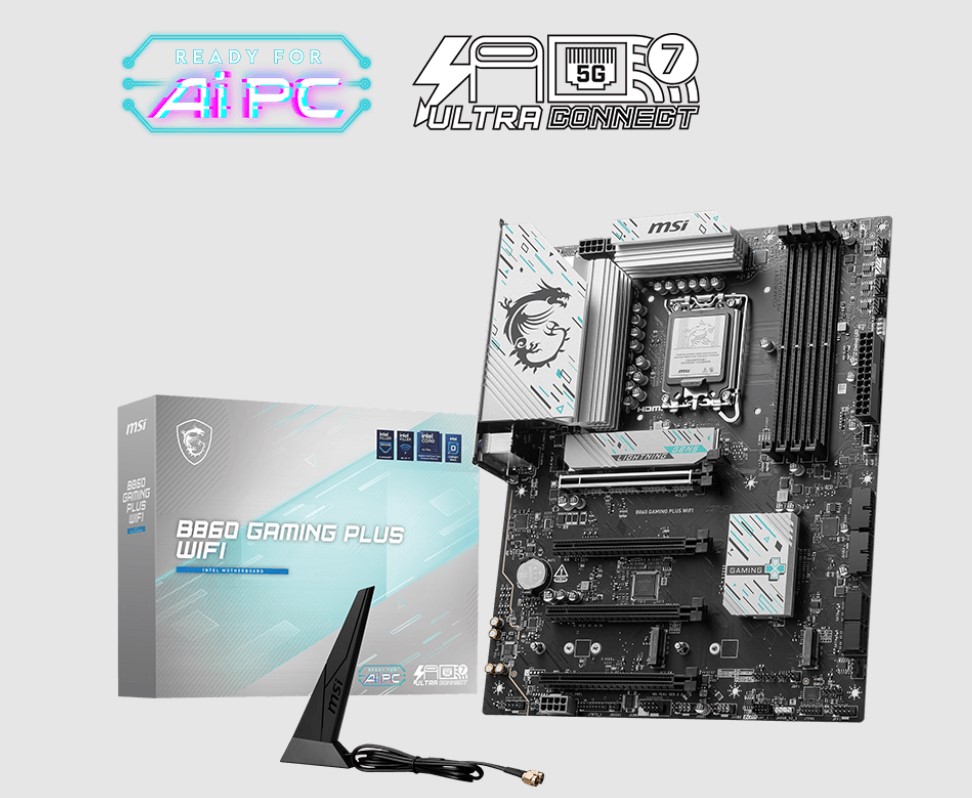

MSI B860 GAMING PLUS WIFI, INTEL B860, 4x DDR5 256GB, 1x HDMI, 4x PCI-E x16, 3x M.2, 4x SATA, 8x USB 2.0, Intel® Killer™ BE1750x Wi-Fi 7

MSI B860 GAMING PLUS WIFI, INTEL B860, 4x DDR5 256GB, 1x HDMI, 4x PCI-E x16, 3x M.2, 4x SATA, 8x USB 2.0, Intel® Killer™ BE1750x Wi-Fi 7

Chipset
INTEL B860

Memory
4x DDR5 UDIMM, Maximum Memory Capacity 256GB

Onboard Graphics
1x HDMI™
Support HDMI™ 2.1, maximum resolution of 4K 60Hz*
1x DisplayPort
Support DisplayPort 1.4, maximum resolution of 4K 60Hz*
1x Type-C DisplayPort
Thunderbolt™ 4 port, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

Slot
4x PCI-E x16 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
PCI_E4 Gen PCIe 4.0 supports up to x1 (From Chipset)

Storage
3x M.2
4x SATA 6G

RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

USB
4x USB 2.0 (Rear)
4x USB 2.0 (Front)
2x USB 5Gbps Type A (Rear)
4x USB 5Gbps Type A (Front)
2x USB 10Gbps Type A (Rear)
1x USB 10Gbps Type C (Front)

WIRELESS LAN BLUETOOTH Intel® Killer™ BE1750x Wi-Fi 7

OPERATING SYSTEM Support for Windows® 11 64-bit

PCB Info ATX
243.84mmx304.8mm

More Information

Manufacturer

MSI

Warranty

36

Product Information

Datasheet

Optional Accessories
