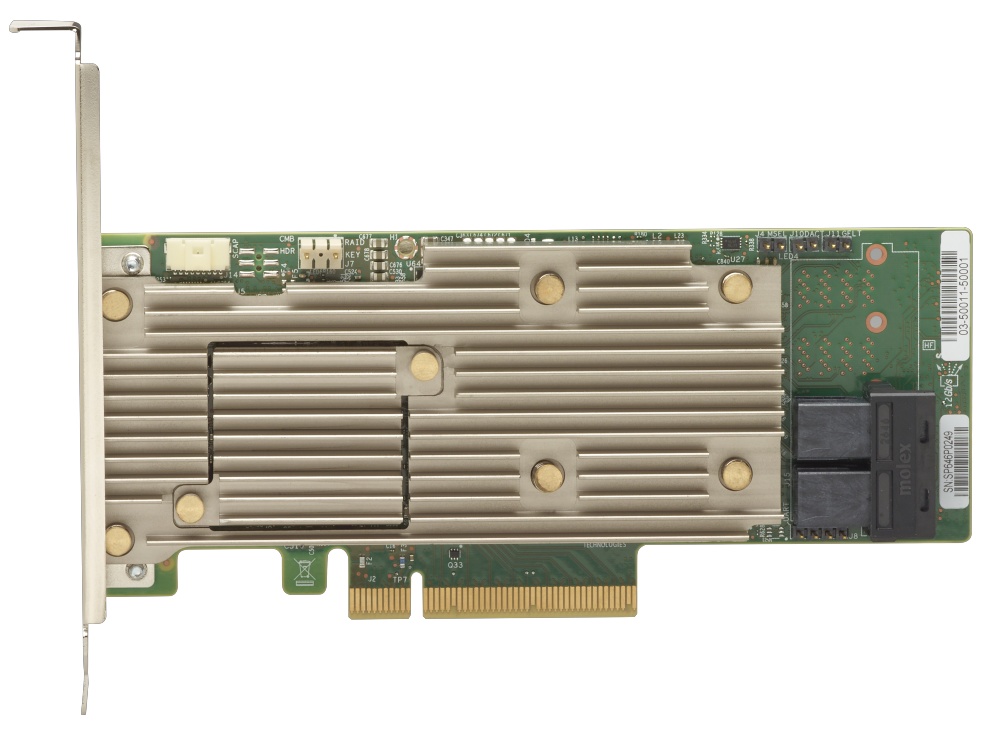

LENOVO ThinkSystem RAID 930-8i 2GB Flash PCIe 12Gb Adapter for SR250/SR530/SR550/SR570/SR590/SR630/SR650/SR635/SR645/SR655/SR665/ST50/ST250/ST550

“The ThinkSystem RAID 930-8i 2GB Flash PCIe internal RAID adapter has the following specifications:

• PCIe 3.0 x8 host interface, low profile card

• 12 Gbps SAS/SATA RAID controllers, based on the Broadcom MegaRAID 9460 adapter family

• 2GB of integrated flash-backed cache

• Connectivity for up to 8 internal SAS or SATA drives

• Support for intermixing SAS and SATA HDDs and SSDs. Mixing SAS and SATA drives in the same array is not supported. Mixing of HDDs and SSDs in the same array is not supported.

• Support for intermixing of 12 Gbps and 6 Gbps drives.

• Support for RAID 0, 1, 10, 5, 50, 6 and 60 standard

• Support for JBOD (non-RAID) drive state

• Support for up to 64 virtual disks, up to 128 arrays, up to 16 virtual disks per array

• Support for logical drive sizes greater than 2 TB.

• Configurable stripe size from 64 KB up to 1 MB

• Supports 512e, 512n and 4K sector formatted drives

• Supports UNMAP command for SAS SSDs (JBOD and RAID volumes)

• Supports TRIM command for SATA SSDs (JBOD)

• Compliant with Disk Data Format (DDF) configuration on disk (CoD).

• S.M.A.R.T. support

• Configuration through

  • XClarity Provisioning Manager UEFI interface

  • XClarity Controller web interface

  • XClarity Administrator Configuration Patterns

  • StorCLI command-line interface

  • LSI Storage Authority (LSA) GUI interface

  • UEFI Human Interface Infrastructure (HII)

Note: CacheCade is not supported by this adapter

Product Guide”
