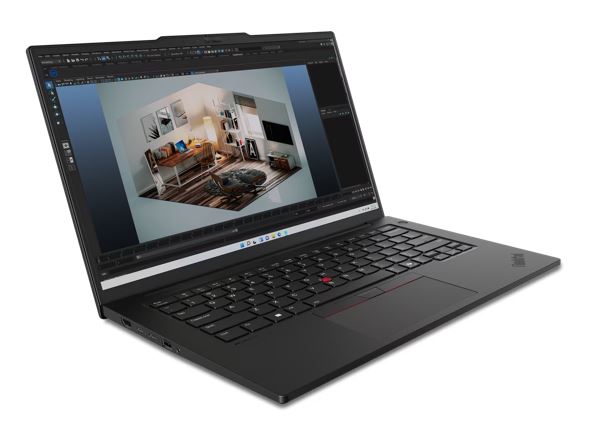

LENOVO ThinkPad P14S G5 14” WUXGA IR Intel U7-155H 32GB DDR5 512GB SSD Windows 11 Pro Arc Graphics AI PC NPU TOPS 11 Thunderbolt 3yr Prem 1.6kg

LENOVO ThinkPad P14S G5 14” WUXGA IR Intel U7-155H 32GB DDR5 512GB SSD Windows 11 Pro Arc Graphics AI PC NPU TOPS 11 Thunderbolt 3yr Prem 1.6kg

PERFORMANCE
Processor Intel® Core™ Ultra 7 155H, 16C (6P + 8E + 2LPE) / 22T, Max Turbo up to 4.8GHz, 24MB
AI PC Category AI-Ready Workstations
NPU Integrated Intel® AI Boost, up to 11 TOPS
Graphics Integrated Intel® Arc™ Graphics
Chipset Intel® SoC Platform
Memory 2x 16GB SO-DIMM DDR5-5600 Non-ECC
Memory Slots Two DDR5 SO-DIMM slots, dual-channel capable
Max Memory Up to 96GB (2x 48GB DDR5 SO-DIMM)
Storage 512GB SSD M.2 2280 PCIe® 4.0×4 NVMe® Opal 2.0
Storage Support One drive, up to 2TB M.2 2280 SSD
Storage Slot One M.2 2280 PCIe® 4.0 x4 slot
Card Reader No card reader
Audio Chip High Definition (HD) Audio, Realtek® ALC3287 codec
Speakers Stereo speakers, 2W x2, Dolby Audio™
Camera 5.0MP + IR with Privacy Shutter and Human Presence Detection
Microphone 2x, Array
Battery Integrated 75Wh
Power Adapter 100W USB-C® Slim (3-pin)
DESIGN
Display 14.5″ WUXGA (1920×1200) IPS 300nits Anti-glare, 45% NTSC, 60Hz, Eyesafe®, TÜV Low Blue Light
Touchscreen None
Color Calibration None
Keyboard Backlit, English
Case Color Black
Case Material Aluminium (Top), Aluminium (Bottom)
Pen Pen Not Supported
Dimensions (WxDxH) 325.5 x 227.6 x 18.5 mm (12.81 x 8.96 x 0.73 inches)
Weight Starting at 1.61 kg (3.55 lbs)
SOFTWARE
Operating System Windows® 11 Pro, English
Bundled Software None
CONNECTIVITY
Ethernet 100/1000M (RJ-45)
WLAN + Bluetooth Intel® Wi-Fi® 6E AX211, 802.11ax 2×2 + BT5.3
WWAN Non-WWAN
SIM Card None
NFC None
Standard Ports 1x USB-A (USB 5Gbps / USB 3.2 Gen 1)
1x USB-A (USB 5Gbps / USB 3.2 Gen 1), Always On
2x USB-C® (Thunderbolt™ 4 / USB4® 40Gbps), with USB PD 3.0 and DisplayPort™ 2.1
1x HDMI® 2.1, up to 4K/60Hz
1x Headphone / microphone combo jack (3.5mm)
1x Ethernet (RJ-45)
1x Security keyhole
Optional Ports (configured) None
Docking Various docking solutions supported via Thunderbolt™ or USB-C®. For more compatible docking solutions, please visit Docking for ThinkPad® P14s Gen 5 (Intel®)
SECURITY PRIVACY
Smart Card Reader None
Security Chip Discrete TPM 2.0 Enabled
Fingerprint Reader Touch Style, Match-on-Chip, Integrated in Power Button
Physical Locks Kensington® Nano Security Slot™, 2.5 x 6 mm
Other Security Bottom cover tamper detection
Camera privacy shutter
Ultrasonic Human Presence Detection for IR camera
IR camera for Windows® Hello (facial recognition)
MANAGEABILITY
System Management Non-vPro®
SERVICE
Base Warranty 1-year, Courier or Carry-in
Included Upgrade 3Y Premier Support Upgrade from 1Y Courier/Carry-in, CO2 Offset 0.5 ton (2nd Generation Carbon Offset Projects)
ACCESSORIES
Bundled Accessories None
CERTIFICATIONS
Green Certifications ENERGY STAR® 8.0
EPEAT™ Gold Registered
RoHS compliant
TCO Certified 10.0
Other Certifications Eyesafe® Certified 2.0
TÜV Rheinland® Low Blue Light
Mil-Spec Test MIL-STD-810H military test passed

More Information

Manufacturer

Lenovo

Warranty

36

Product Information

Datasheet

Optional Accessories

NAL-4X20M26280, NAT-TBT913AU, NAT-TBT265AU, NAL-40AF0135AU, NAL-4X20V24686, NAL-4X30H56796, MNLEN-S27I-20, NAL-40AY0090AU, SMS-OFFHB2021-ML, MNLEN-62CDGAR6AU, MNLEN-C24-40, OSL-5TS1J33913
