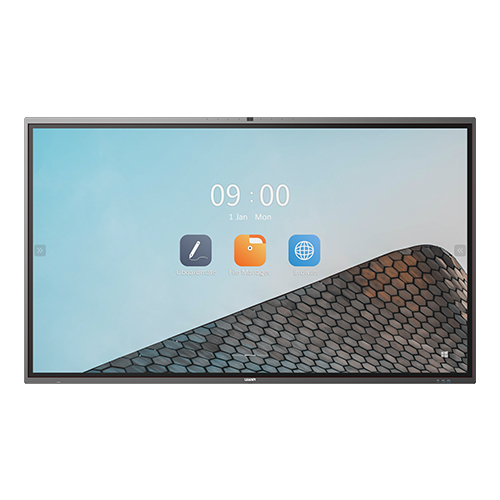

Leader Discovery Interactive Touch Panel 86

PANEL Screen Size 86″(85.6″)
Panel Technology TFT LCD
Display Resolution 3840×2160
Brightness (Type) 350cd/㎡
Contrast (Type) 1200:1
Dynamic Contrast(DCR) > 10,000:1
Response Time (Gray To Gray) 8ms
Frame Rate 60Hz
Viewing Angle (H / V) 178°/178°
Backlight Type Direct LED
Service Life > 30,000 Hours
Installation Landscape
TOUCH Detection Method Infrared
Avalilable Touch Point 32 Point
Response Time (Type) <= 10 ms Minimum Response Size >= Φ3mm
Touch Resolution 32768 x 32768
Communication Interface USB
CONNECTIVITY HDMI2.0 Input(s) 2(2Side)
HDMI Output N/A
VGA Input(s) (with Mini Jack Audio Input) 1(Bottom/DE-15F)
DisplayPort 1.2Input(s) N/A
Digital Output(s) 1(Bottom/Coaxial)
Audio/Line In 1(Bottom/Mini Jack)
Line Out 1(Bottom/Mini Jack)
USB 2.0 Port(s) 3(2Front/Type-A, 1Side/Type-A)
USB Type-C 1(Front USB 2.0/Type-C)
Media Card Reader 1(Side/Micro SD)
RS-232C Port(s) 1(Bottom/DE-9F)
LAN Port(s) 1(Side ; RJ45 for 10/100 BaseT)
WI-Fi Module IEEE 802.11 a/b/g/n/ac
Touch Out 1(Side/USB Type-B)
Bluetooth Version 5.0
SOUND Audio Power Output (RMS) 15W x 2
Subwoofer N/A
Speaker Position Down Firing
Sound Mode Standard/News/Music/Movie/Sports/User
SMART SYSTEM CPU ARM Cortex A55x4
GPU Mali-G52
Operating System Android 9.0
Memory 3 GB
On-Board Storage 32 GB
OSD OSD Language Function English, Traditional Chinese
MECHANICAL Dimension of Product (W x H x D) 1959.1*85*1149.8mm
Dimension of Package Carton (W x H x D) 2107*289*1304mm
VESA® Hole Pitch (W x H) 800 x 600mm, M8 Screw
Weight of Product 63.5KG
Weight of Package Carton (Gross) 76.1KG
Container Loads-20 20
Container Loads-40 40
Container Loads-40H 40
Front Glass Tempered Glass (Anti-glare Type)
POWER Power Supply AC 110-240 V 50 / 60Hz
Power Consumption (in Operation) TBD
Power Consumption (in Standby) <= 0.5 W ECO Sensor Yes Energy Label Rating N/A ENVIRONMENTAL Operation Temperature 0 - 40 ℃ Storage Temperatu

More Information

Manufacturer

Leader

Warranty

12

Product Information

Datasheet

Optional Accessories

MABT-HAW400-90, MABT-TTL09-812FW, MABT-TTL12-610TW-W, MABT-TTL12-610TW-B, OSW-3YR-IP86-UPG, OSW-5YR-IP86-UPG, MNE-OPS-IDL05
