LDR Outdoor Smart Solar Box, IP55,*2.4 inch Screen*,Waterproof,Solar Power Input( <100VD),2 PoE Port Up to 90W, 6 PoE Port Up to 30W, L2 Manage, White

LDR Smart Solar Box, IP55, *NoTouch Screen*

SKU: RCLDR-DB-QU3082SPG

Description:

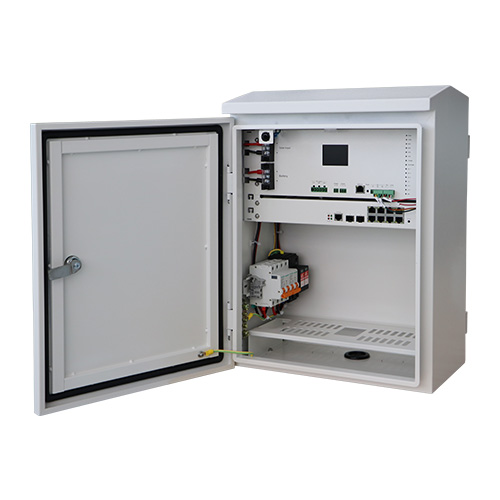

RCLDR-DB-QU3082SPG is an outdoor smart solar powered box, powered by solar battery, with MPPT controller, PoE switch, circuit-breaker, surge protector inside.
It can be applied for surveillance monitoring, forest monitoring, etc

Data Sheet: Click Here
User Manual: Click Here

Software Operation Guide: Click Here
Software Installation: Click Here
Smart Solar Box Operation : Click Here

Key Features
• BYO: * Need to buy your own battery* – DC 12V lead-acid or Lithium Battery – *Customer Provide*
• BYO: * Need to buy your own solar panel* – Solar power input, input <100VDC; • Load Capacity : 70kg • Provide DC 3 channel power output, can remotely control, detect the output voltage and current; • Supports 2 port PoE power each up to 90W, 6 port PoE power each up to 30W; • Network Switch: 8*/10/100/1000M Base-TX 30W PoE, 2* 1000M SFP, unmanaged • Supports L2 management, such as QoS, VLAN, MSTP, Multi-broadcast, ports management and PoE management;• With No Touch Screen, 2.4 inch, resolution ratio 480*800 • With MPPT controller, connected the solar battery and charge the storage battery ; • The box adopts waterproof, anti-rust treatment, suitable for long time outdoor use. • With software platform, can check and control remotely. • Dimension(H×W×D): 500mm×380mm×220mm • Net weight: 15kg

More Information

Manufacturer

LDR

Warranty

12

Optional Accessories

RCLDR-PM-OD-NPT0101, RCLDR-OD-QB2082SPG, RCLDR-DB-QU3082SPG-T
