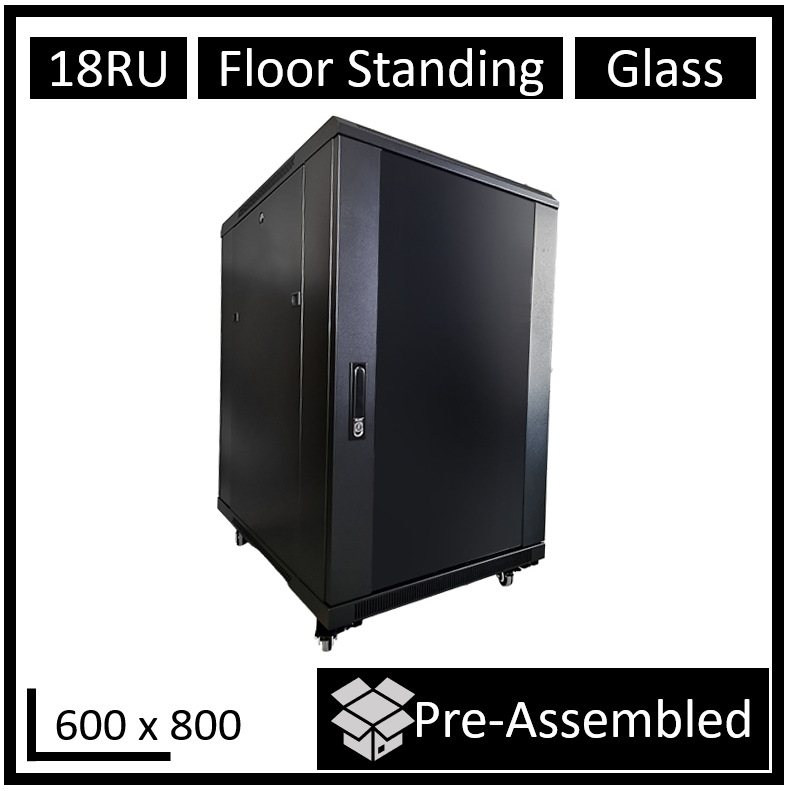

The LDR single section cabinets of the mounting height 18U are most often used in close circuit television, security alarm, and access control system installations. Apart from security and organization, they provide quick access to the elements mounted inside. The glass in the front door is made of smoked tempered glass with a thickness of 5mm. Apart from the possibility to mount devices in 19-inch standard, other devices that are not compatible with the rack system (such as switches or recorders) may be placed in the cabinets with the use of shelves. A wide range of optional accessories allows to adjust the cabinet to your own needs.

FEATURES

4 Way Fan, 8-Port PDU Two Shelves Included
Side doors mounted on latches with a lock assembly option
A frame with a load capacity of 800kg
Protection class IP20
Front door – glass

SPECIFICATIONS

Nominal height 18U
Total outer height 820mm
Outer width 600mm
Outer depth 800mm
Mounting depth 900mm
Colour Black
Maximum load capacity 800kg
Protection class IP20
Front doors Glass with a lock
Back doors Solid with a lock
Side panels Full steel dismounted on latches with a lock assembly option

More Information

Manufacturer

LDR

Warranty

0

Product Information

Datasheet

Optional Accessories

RAPB-PBXEXE, KVA-PE0116SG, KVA-PE0118SG, KVA-PE0216SG, KVA-PE0218SG, KVA-PE0224SG, RCLDR-ACC-PDU10-10, RCLDR-ACC-PDU10-8, RCLDR-ACC-PDU10-6, RCLDR-ACC-CABLEMT, RCLDR-ACC-PP-24-6, RCLDR-ACC-PP-24-6A, RCLDR-ACC-2FANRM, RCLDR-ACC-BRUSH-1U, RCLDR-ACC-THERMO, RCLDR-ACC-BLANKT-1U, RCLDR-ACC-PDU10-9IEC, RCLDR-ACC-BLANK-1U, RCLDR-ACC-BLANK-2U, RCLDR-ACC-DINRAIL, RCLDR-ACC-PDU10-12, RCLDR-ACC-FSHELF550
