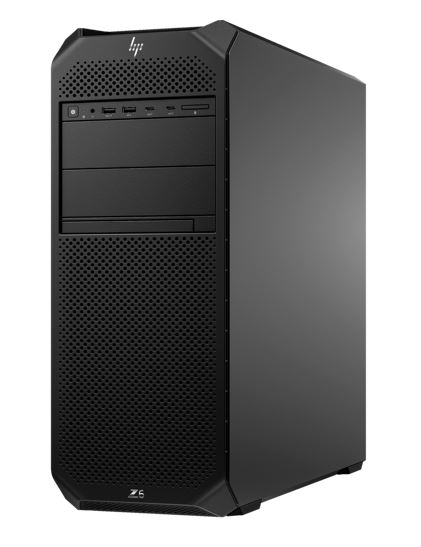

HP Z6 G5 AI Workstation Intel Xeon W5-3435X 128GB DDR5 1TB SSD +2TB HDD Windows 11 PRO RTX A4000 16GB NPU 100 TOPS 3YR Active Care NBD Onsite CTO

HP Z6 G5 AI Workstation Intel Xeon W5-3435X 128GB DDR5 1TB SSD +2TB HDD Windows 11 PRO RTX A4000 16GB NPU 100 TOPS 3YR Active Care NBD Onsite

Available Operating Systems Windows 11 Pro 64 Downgrade Win 10 Pro 64 for Workstations 6 Cores Plus
Processor family Intel® Xeon® processor
Available Processors Intel® Xeon® W5-3435X (3.1 GHz base frequency, up to 4.7 GHz with Intel® Turbo Boost Technology, 45 MB L3 cache, 16 cores, 32 threads)
Chipset Intel® W790
Form factor Tower
Memory 128GB (8x16GB) DDR5 4800 DIMM ECC REG 1CPU Memory
Internal storage Z Turbo 1TB PCIe-4×4 2280 TLC M.2 Solid State Drive
HP Z Turbo 2TB PCIe-4×4 2280 TLC M.2 2nd SSD
Optical drive No Included ODD
Graphics NVIDIA RTX A4000 16 GB FH Blower Fan 4DP PCIe x16 Graphics
Audio Realtek ALC3205-CG
Expansion slots 2 PCIe 4 x4; 2 PCIe 4 x16; 1 PCIe 3 x16; 1 PCIe 5 x16(Rear bulkhead access can be achieved through all slots but 2 PCIe 4 x8 are internalaccess only for M.2.)
Ports and connectors Front: 4 USB Type-A 5Gbps signaling rate;
1 headphone/microphone combo;
Type-A SuperSpeed USB 5Gbps Front IO v2 Entry Module
Input devices HP 125 BLK Wired Keyboard
HP Wired 320M Mouse
Communications
LAN Intel X550-T2 10GbE Dual Port NIC
No Load Flex Port
Software HP PC Hardware Diagnostics UEFI;
HP Performance Advisor;
HP Support Assistant;
HP PC Hardware Diagnostics Windows;
HP ImageAssistant;
HP Manageability Integration Kit;
HP Anyware;
HP Services Scan;
HP Data Science Stack Manager
Full volume encryption;
HP Secure Erase;
Kensington lock slot;
Secure authentication;
TPM 2.0 certified;
HP BIOSphere;
HP Sure Run;
HPSure Click;
HP Sure Sense;
HP Sure Admin;
HP Platform Certificate;
HP Sure Start;
HP Sure Recover;
Self-Encrypted Drives
Security Software Licenses HP Wolf Pro Security Edition
Management features HP Driver Packs; HP System Software Manager (download); HP BIOS Configuration Utility (download); HP Smart Support
Power 1125W EPA90 WW Power Supply
Dimensions 16.89 x 46.48 x 44.45 cm;
31.3 x 61.0 x 59.3 cm(Package)
Weight Starting at 12.8 kg;
(Exact weights depend upon configuration (System weight only))
Ecolabels EPEAT® registered configurations available; TCO Certified configurations available
Energy star certified ENERGY STAR® certified (configurations available)
Sustainable impactspecifications Low Halogen; 40% post-consumer recycled plastic; 25% ITE-derived closed loop plastic; Bulk packaging available; External powersupply 90% efficiency; Plastic cushion inserts contain 80% recycled content; Ocean-bound plastic in system fan; 10% post-industrialrecycled metal; Molded paper pulp cushion inside box is 100% sustainably sourced and recyclable
Compatible displays All HP Z Displays and HP DreamColor Displays are supported.
Warranty HP 3 year Active Care Next Business Day Response OnsiteWorkstationHardware Support

More Information

Manufacturer

HP

Warranty

36

Product Information

Datasheet

Optional Accessories

NAHP-5TW10AA, MNHP-P27HG5, MNHP-E27G5, MNHP-324PF, MNHP-P34HCG4, NAHP-235WLM, NAHP-235WLKBM, MNHP-324PV, NAHP-6E6F2AA, NAHP-6Y7L2AA
