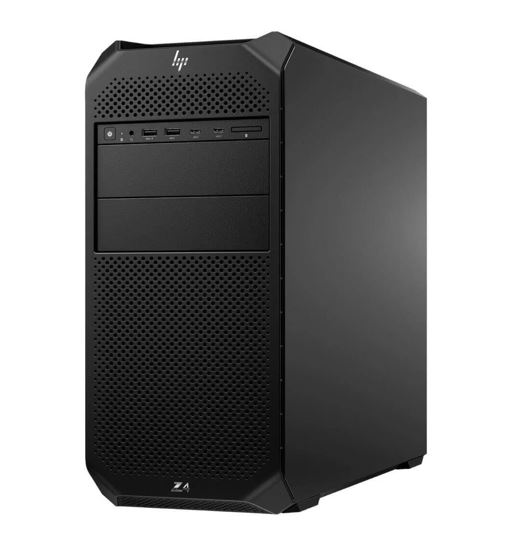

HP Z4 G5 AI Workstation Intel Xeon W3-2423 32GB DDR5 512GB SSD + 1TB HDD Windows 11 PRO nVidia T1000 8GB NPU 3YR Active Care NBD Onsite

HP Z4 G5 AI Workstation Intel Xeon W3-2423 32GB DDR5 512GB SSD + 1TB HDD Windows 11 PRO nVidia T1000 8GB NPU 3YR Active Care NBD Onsite

Operating system Windows 11 Pro
Processor family Intel® Xeon® W processor
Processor Intel® Xeon® W3-2423 (up to 4.0 GHz with Intel® Turbo Boost Technology, 15 MB L3 cache, 6 cores, 12 threads)
Chipset Intel® W790
Form factor Tower
Graphics (discrete) NVIDIA® T1000 (8 GB GDDR6 dedicated)
Memory 32 GB DDR5-4800 MT/s ECC (2 x 16 GB) Transfer rates up to 4800 MT/s.
Internal Storage 512 GB HP Z Turbo Drive PCIe® Gen4 TLC M.2 SSD
Hard drive (2nd) 1 TB 7200 rpm SATA HDD
Internal drive bays One 3.5″; Four PCIe® M.2 SSD; Three 3.5″ HDD
External drive bays Two NVMe™ M.2 SSD; Two 3.5″ HDD; Two 9.5 mm ODD
Slots 1 PCIe 5 x16; 2 PCIe 4 x16; 2 PCIe 4 x4 Rear bulkhead access can be achieved through all slots but 2 PCIe 4 x8 are internal access only for M.2.
Ports 4 USB Type-A 5Gbps signaling rate; 1 headphone/microphone combo
I/O Port location Front
Network interface Integrated Intel® I219-LM GbE
Audio Realtek ALC3205-CG
Keyboard HP USB 320K Keyboard
Pointing device HP Wired 320M Mouse
Power 775 W internal power supply, up to 90% efficiency, active PFC
Energy efficiency ENERGY STAR® certified
Ecolabels ENERGY STAR® certified
Sustainable impact specifications Low Halogen; 40% post-consumer recycled plastic; 25% ITE-derived closed loop plastic; Bulk packaging available; External power supply 90% efficiency; Plastic cushion inserts contain 80% recycled content; Ocean-bound plastic in system fan; 10% post-industrial recycled metal; Molded paper pulp cushion inside box is 100% sustainably sourced and recyclable [16,35,36,37,38]
Energy star certified ENERGY STAR® certified
Security management Full volume encryption; HP Secure Erase; Kensington lock slot; Secure authentication; TPM 2.0 certified; HP BIOSphere; HP Sure Run; HP Sure Click; HP Sure Sense; HP Sure Admin; HP Platform Certificate; HP Sure Start; HP Sure Recover; Self-Encrypted Drives
Management features HP Driver Packs; HP System Software Manager (download); HP BIOS Configuration Utility (download); HP Smart Support
Software included HP Performance Advisor; HP Support Assistant; HP PC Hardware Diagnostics Windows; HP Image Assistant; HP Manageability Integration Kit; HP Anyware; HP Data Science Stack; HP Services Scan
Available software HP Smart Support

More Information

Manufacturer

HP

Warranty

36

Product Information

Datasheet

Optional Accessories

NAHP-5TW10AA, NAHP-4J0A2AA, MNHP-E27G5, MNHP-P34HCG4, NAHP-235WLM, NAHP-235WLKBM, MNHP-324PV, NAHP-6Y7L2AA, MNHP-527DA
