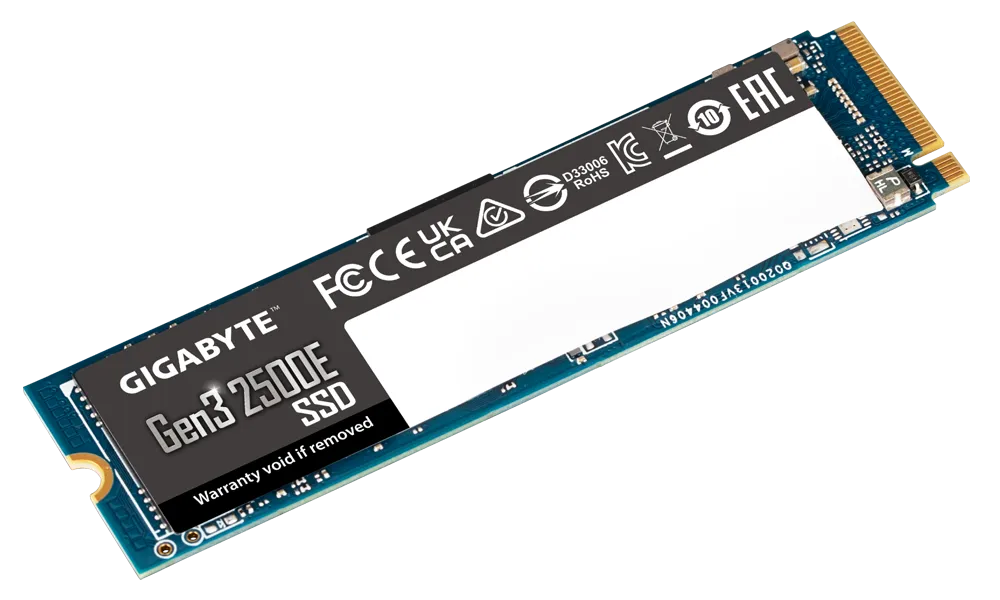

Gigabyte G325E 500G M2 500G PCIe 3.0×4, 2300/1500 MB/s 60k/240Kl MTBF 1.5m hr Limited 3 years or 240TBW

Gigabyte G325E 500G M2 500G PCIe 3.0×4, 2300/1500 MB/s 60k/240Kl MTBF 1.5m hr Limited 3 years or 240TBW

Interface
PCIe 3.0×4, NVMe1.3 interface
Form Factor
M.2 2280
Total Capacity
500GB
External DDR Cache
N/A
Sequential Read speed
Up to 2300 MB/s
Sequential Write speed
Up to 1500 MB/s
Random Read IOPS
Up to 60K
Random Write IOPS
Up to 240K
Dimension
22 x 2.3 x 80 mm
Mean time between failure (MTBF)
1.5 million hours
Power Consumption (Active)
Average R : 2670mW
Average W : 3200mW
Power Consumption (Idle)
Idle : 30mW
L1.2 < 5mW Temperature (Operating) 0°C to 70°C Temperature (Storage) -40°C to 85°C Warranty 1. Limited 3 years or 120TBW. 2. Limited warranty based on 3 years or 120TBW, whichever comes first. (*TBW is evaluated by JEDEC workload standard. ) *TBW (Terabyte Written): Terabytes Written is the total amount of data that can be written into a SSD before it is likely to fail. 3. When the usage of an NVME SSD as indicated by the "Percentage Used" (SMART ID: 05) in SMART page of "GIGABYTE SSD toolbox" reaches 100 means out of warranty. (A new unused product will show the number of 0)

More Information

Manufacturer

Gigabyte

Warranty

60

Product Information

Datasheet

Optional Accessories
