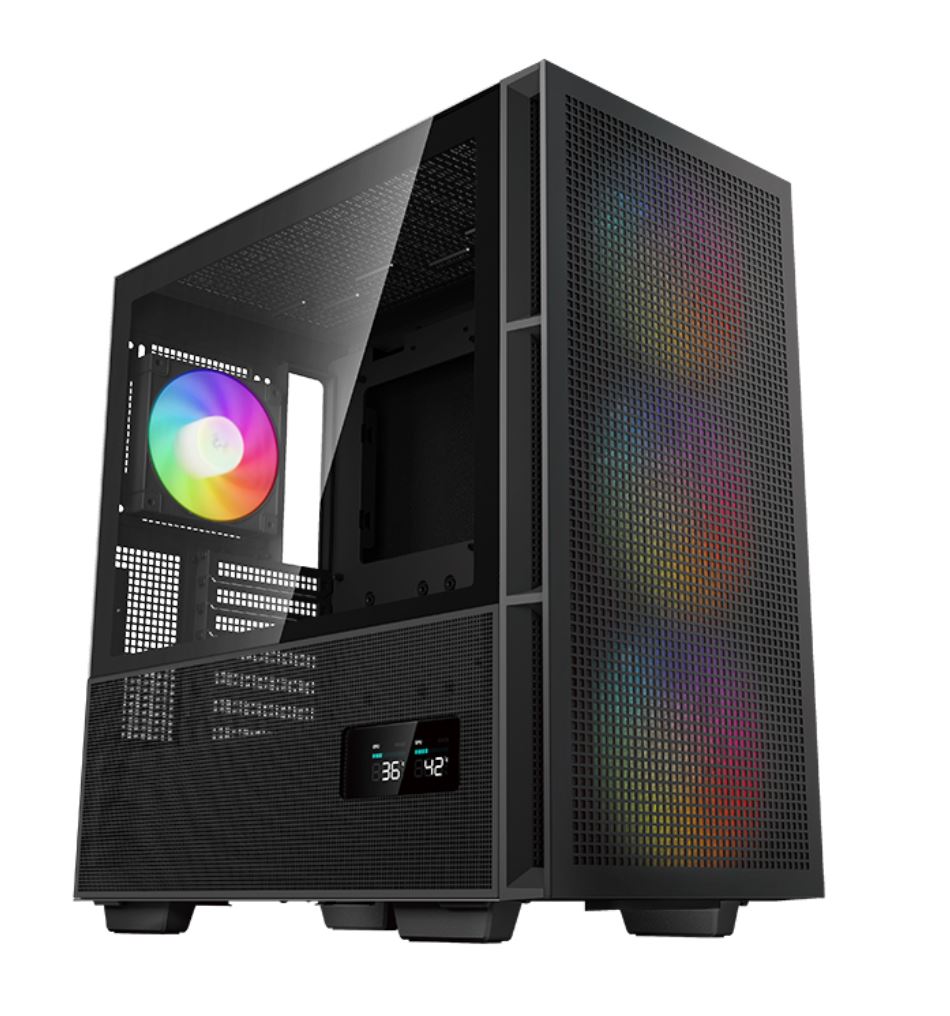

Deepcool Ch560 Digital High Airflow Mid

Technical Spec
Product Dimensions 458×230×471mm(L×W×H)
Net Weight 7.5Kg
Materials ABS+SPCC+Tempered Glass
Motherboard Support Mini-ITX / Micro-ATX / ATX / E-ATX
Front I/O Ports USB3.0×1、Audio×1、TYPE-C×1
3.5″ Drive Bays 2
2.5″ Drive Bays 2+1
Expansion Slots 7 Slots
Pre-Installed Fans Front: 3×140mm Argb
Rear: 1×120mm Argb
Fan Support Front: 3×120 / 3×140mm
Top: 3×120 / 2×140mm
Rear: 1×120 / 1×140mm
PSU Shrouded: 2×120mm
Radiator Support Front: 120/140/240/280/360mm
Top: 120/140/240/280/360mm
Rear: 120/140mm
CPU Cooler Height Limit 175mm
GPU Length Limit 380mm
Power Supply Type ATX PS2 （maximum length: 170mm）

More Information

Manufacturer

DEEPCOOL

Warranty

12

Product Information

Datasheet

Optional Accessories

CAD-PIXEL-BK, CAD-PIXEL-WH, CAD-PIXEL-GB, CAD-PIXEL-RD, CAD-PIXEL-YE, CAD-PIXEL-BU, CAD-PIXEL-PK, CAD-PIXEL-TV, CAD-PIXEL-GY, CAD-PIXEL-PO
