DeepCool CG580 Panoramic ATX Mid-Tower Case, Up to 2x 360mm Radiators, 9x120mm Fans. Front 2x USB3.0, Audio I/O Panel

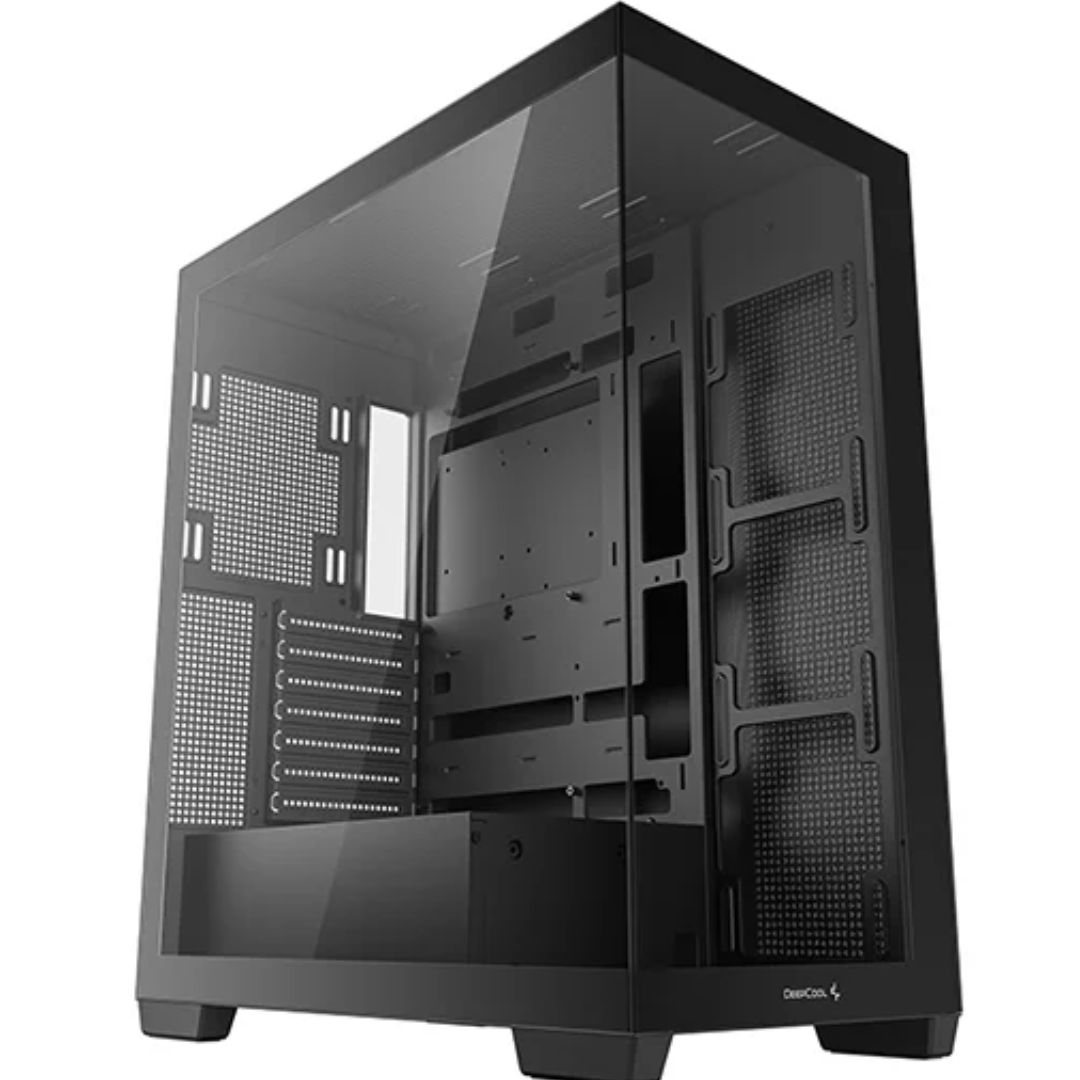

CG580The CG580 is a picturesque single-chamber panoramic case that was built to accommodate the most commonly used components available while showing them off in style. With support for 360mm radiators and numerous fan configurations, the CG580 is also extremely functional. No fans are included, so the case is fully primed to accept your favorite cooling fans.

Product Dimensions 437×235×501mm(L×W×H)
Net Weight 7.9Kg
Materials ABS+SGCC+Tempered Glass
Motherboard Support ITX/Micro-ATX/ATX
ATX(Rear Connector)/Micro-ATX(Rear Connector)
Front I/O Ports USB3.0×2、Audio×1、Power、Reset
3.5″ Drive Bays 2
2.5″ Drive Bays 2+1
Expansion Slots 7Slots
Pre-Installed Fans None
Fan Support Front: NA
Top: 3×120mm/2x140mm
Side: 3x120mm
Rear: 1×120mm/1x140mm
Bottom: 1×120mm（3.5 HDD/120FAN :Choose one of two）
PSU Shrouded: 2×120mm
Radiator Support Front: NA
Top: 120/140/240/280/360mm
Side: 120/240/360mm
Rear: 120/140mm
CPU Cooler Height Limit 176mm
GPU Length Limit 410mm
(limited to 262mm if a 360mm radiator and fan set are mounted on the side)
Power Supply Type ATX PS2（maximum length: 210mm）
