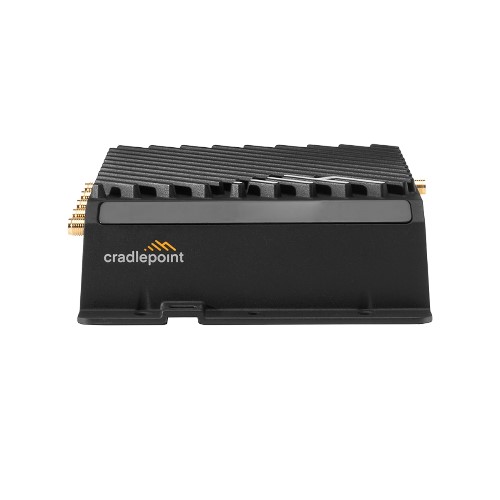

Cradlepoint R920 Mobile Ruggedized Router, Cat 7 LTE, Essential Plan, 2x SMA cellular connectors, 2x GbE Ports, Dual SIM, 3 Year NetCloud

Cradlepoint R920 Mobile Ruggedized Router, Cat 7 LTE, Essential Plan, 2x SMA cellular connectors, 2x GbE Ports, Dual SIM, 3 Year NetCloud

The R920 Series Ruggedized Router is a uniquely agile cellular networking solution that meets organizations’ needs for flexible connectivity and product standardization for vehicles and IoT. The Cradlepoint R920 router with the NetCloud Mobile service plan provides a ruggedized GNSS/GPS-enabled in-vehicle network solution. Combined with the RX20 Managed Accessory, the R920 can be field upgraded to include a second LTE or 5G modem. The R920 also supports NetCloud Exchange services, which provide Zero Trust Network Access and cellular-optimized SD-WAN.

The ruggedized design and the CBRS band support make it ideal for private networks. In addition, the solution is highly extensible with APIs, SDKs, and integrations into IoT platforms, and the generous memory supports onboard edge containers.The R920 also supports NetCloud Exchange services, which provide Zero Trust Network Access and cellular-optimized SD-WAN.

Modem:
Embedded Cat 7 LTE modem

Ethernet:
2 x GbE (LAN/WAN switchable)

Wi-Fi:
Dual-radio, dual-band, concurrent operation (2.4 GHz and 5 GHz)

GNSS / GPS:
1 x SMA GNSS antenna connector

Power:
Voltage Supply: 3.05-3.25 V
Max Current: 100 mA

Stateful Firewall Throughput:
940 Mbps

IPS Throughput:
940 Mbps

Application Aware Services Analytics:
940 Mbps

IPsec VPN Throughput:
100 Mbps

Concurrent VPN Tunnels:
20

Concurrent Sessions (TCP):
130,000

Typical Client Count:
30

More Information

Manufacturer

Cradlepoint

Warranty

36

Product Information

Datasheet

Optional Accessories
