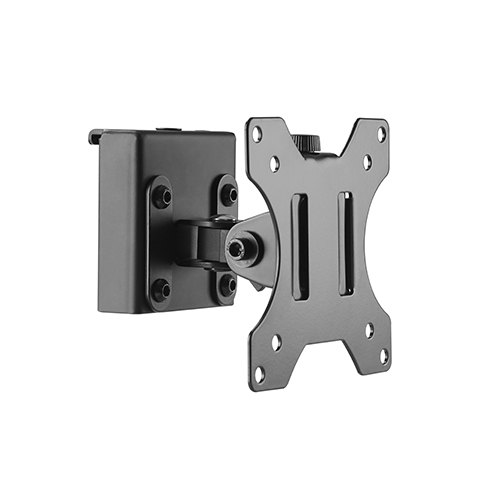

Brateck Slatwall Pivot Monitor Mount, for 13′-27′ Up to 6.5kg/Screen, must be installed with MABT-SW01-3+MABT-SW02-3 or MABT-SW01-3+MABT-SW02-4(LS)

Brateck Slatwall Pivot Monitor Mount, for 13′-27′, Up to 6.5kg/Screen (LS)

The Pivot Monitor Mount has a small and unobtrusive design which can be fixed on the slatwall. It provides a vertical and horizontal monitor adjustment to move the screen into perfect position for viewing.

Can only be installed with one of following combinations together:
MABT-SW01-3 + MABT-SW02-3
or
MABT-SW01-3 + MABT-SW02-4

SPECIFICATION
Product Category: Monitor Hanger
Rank: Standard
Material: Steel
Surface Finish: Powder Coating
Color: Matte Black
Dimensions: 114x94x114mm (4.5’x3.7’x4.5′)
Fit Screen Size: 13′-27′
Screen Quantity: 1
Weight Capacity (per screen): 6.5kg (14.3lbs)
VESA Compatible: 75×75,100×100
Tilt Range: +45°~-45°
Swivel Range: +15°~-15°
Screen Rotation: +180°~-180°
Installation: Hanger
Quick Release VESA Plate: Yes
Accessory Kit Package: Normal/Ziplock Polybag,Compartment Polybag

Recommended combination:
MABT-SW01-3 + MABT-SW02-3 + MABT-SW03-7
MABT-SW01-3 + MABT-SW02-3 + MABT-SW03-8
MABT-SW01-3 + MABT-SW02-3 + MABT-SW03-7 + MABT-SW03-8
MABT-SW01-3 + MABT-SW02-4 + MABT-SW03-7
MABT-SW01-3 + MABT-SW02-4 + MABT-SW03-8
MABT-SW01-3 + MABT-SW02-4 + MABT-SW03-7 + MABT-SW03-8

More Information

Manufacturer

Brateck

Warranty

12

Optional Accessories

MABT-SW01-3, MABT-SW02-3, MABT-SW03-8, MABT-SW03-7, MABT-SW03-10, MABT-SW03-9
