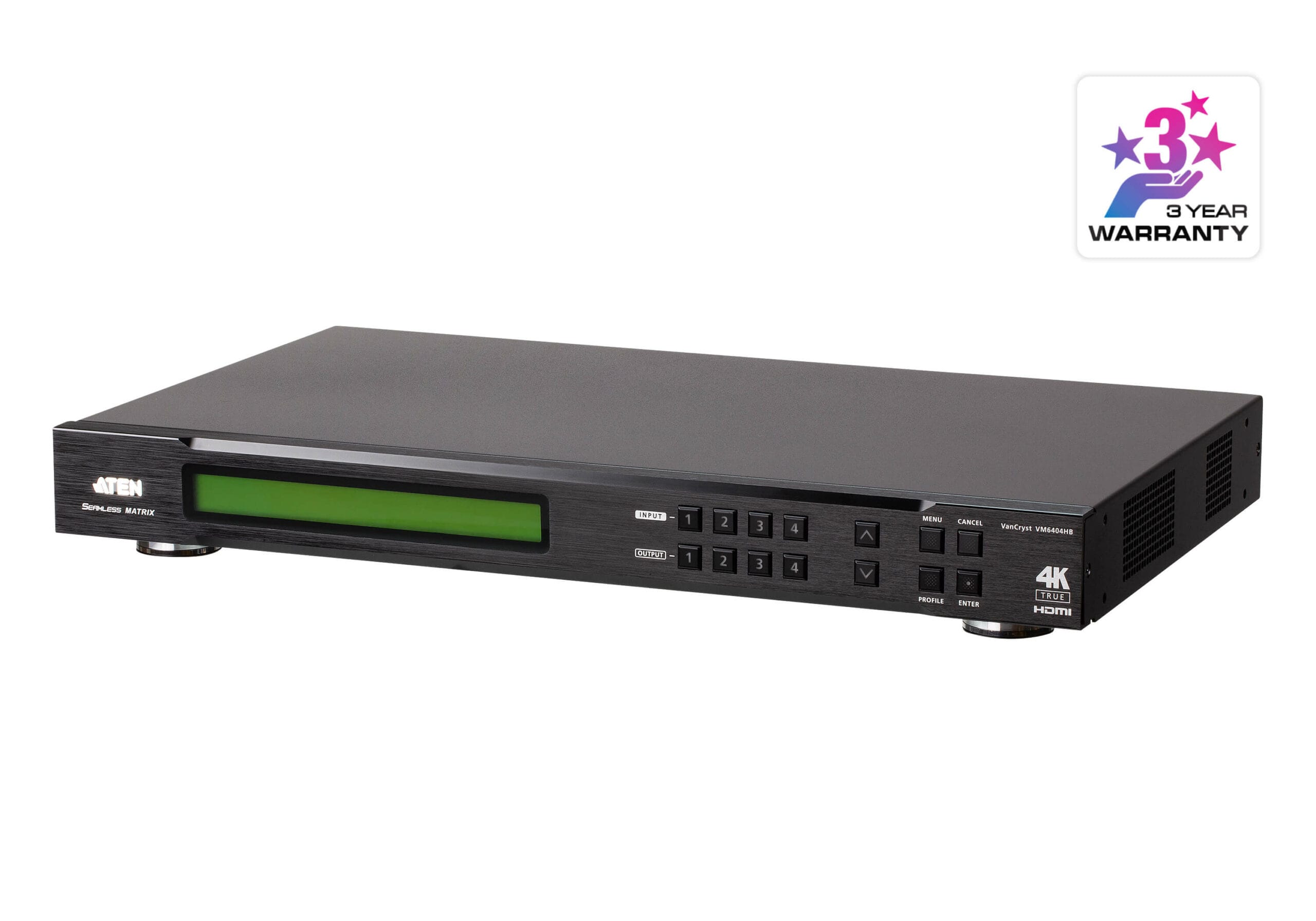

Aten4 x 4 True 4K HDMI Matrix Switch with Scaler

Seamless Switch™ –features close-to-zero second switching for continuous video streams, real-time switching, and stable signal transmissions
■ FrameSync –prevents image tearing by synchronizing the scaler output frame rate to the input signal frame rate
■ HDMI (3D, Deep color, True 4K); HDCP 2.2 compatible
■ Multiple Control Methods – system management via front-panel pushbuttons, IR, RS-232 control, and Ethernet connection for web GUI or Telnet

Video Input
Interfaces 4 x HDMI Type A Female (Black)
Impedance 100 Ώ
Max. Distance 3.0 m
Video Output
Interfaces 4 x HDMI Type A Female (Black)
Impedance 100 Ώ
Max. Distance 3.0 m
Video
Max. Data Rate 18.0 Gbps (6.0 Gbps per lane)
Max. Pixel Clock 600 MHz
Compliance HDMI (3D, Deep Color, 4K);
HDCP 2.2 Compatible;
Consumer Electronics Control (CEC)
Max. Resolution Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4)

Max. Distance Up to 3 m
Audio
Output 1x Mini Stereo Jack Female
Control
RS-232 Connector: 1 x DB-9 Female (Black);
Baud Rate: 19200, Data Bits: 8, Stop Bits: 1, Parity: No,
Flow Control: No
IR 1 x Mini Stereo Jack Female (Black)
Ethernet 1 x RJ-45 Female
EDID Settings EDID Mode: Default / Port 1 / Remix / Customized
(EDID Wizard Support)
Connectors
Power 1 x 3-prong AC Socket
Power
Maximum Input Power Rating 100-240 VAC;50-60Hz;1.0A
Power Consumption AC110V:43.7W:205BTU
AC220V:43.1W:202BTU
Environmental
Operating Temperature 0-50°C
Storage Temperature -20 – 60°C
Humidity 0 – 80% RH, Non-Condensing
Physical Properties
Housing Metal
Weight 3.52 kg ( 7.75 lb )
Dimensions (L x W x H) 43.24 x 26.23 x 4.40 cm
(17.02 x 10.33 x 1.73 in.)
Carton Lot 1 pc
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.

Package Contents
1x VM6404HB 4 x 4 True 4K HDMI Matrix Switch with Scaler
1x Power Cord
1x IR Remote Control
1x IR Receiver
1x Mounting Kit
1x User Ins

More Information

Manufacturer

Aten

Warranty

36

Optional Accessories
