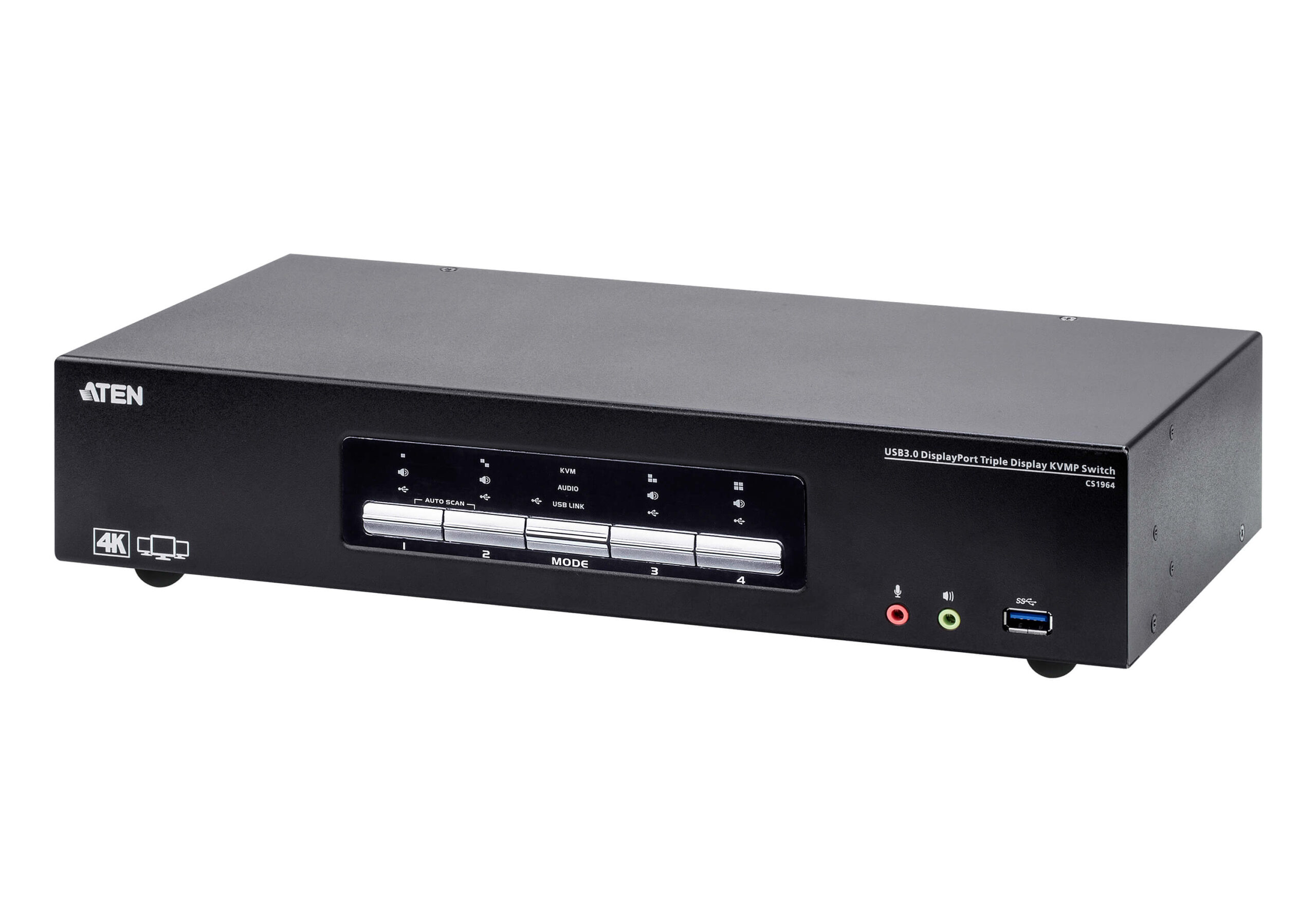

Aten Desktop KVMP Switch 4 Port Triple Display 4k DisplayPort w/ audio, Cables Included, 2x USB Port, Selection Via Front Panel

Aten 4 Port USB 3.0 4K Triple DisplayPort KVMP Switch, supports up to 4096 x 2160 @ 60 Hz, supports MST on DP 1.2 compliant inputs, suppports Video DynaSync, 6 displays by connecting two CS1964 units, includes only two KVM Cable kits

Superior video quality – 4096 x 2160 @ 60Hz and 3840 x 2160 @ 60Hz; 2-Port USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps data transfer rates
Hex-Display – connect a second CS1964 unit for two triple-display setup controlled by one operator
Supports Video DynaSync
Computer selection via pushbuttons, hotkeys, mouse, and RS-232 Commands

omputer Connections 4
Port Selection Hotkey, Pushbutton, Mouse, RS-232 Commands
Connectors
Console Ports 2 x USB Type A Female
3 x HDMI Female (Black)
2 x 3.5mm Audio Jack Female (Green; 1 x front, 1 x rear)
2 x 3.5mm Audio Jack Female (Pink; 1 x front, 1 x rear)
KVM (Computer) Ports 4 x USB3.1 Gen1 Type B Female (Blue)
12 x DisplayPort Female (Black)
4 x 3.5mm Audio Jack Female (Green)
4 x 3.5mm Audio Jack Female (Pink)
Daisy Chain Ports 1 x RJ-45 Female
Power 1 x DC Jack
USB Hub 2 x USB3.1 Gen1 Type A Female (Blue; 1 x front; 1 x rear)
Switches
Selected 5 x Pushbutton
Station Selection 1 x Slide Switch
LEDs
USB Link 5 (Green)
Audio 5 (Green)
KVM 5 (Orange)
Emulation
Keyboard / Mouse USB
Video 4096 x 2160 @ 60Hz
Scan Interval 1-99 seconds (default: 5 seconds)
Power Consumption DC12V:15.49W:115BTU
Environmental
Operating Temperature 0–50°C
Storage Temperature -20–60°C
Humidity 0-80% RH, Non-condensing
Physical Properties
Housing Metal
Weight 1.93 kg ( 4.25 lb )
Dimensions (L x W x H)33.50 x 15.60 x 6.55 cm

More Information

Manufacturer

Aten

Warranty

24

Product Information

Datasheet

Optional Accessories
