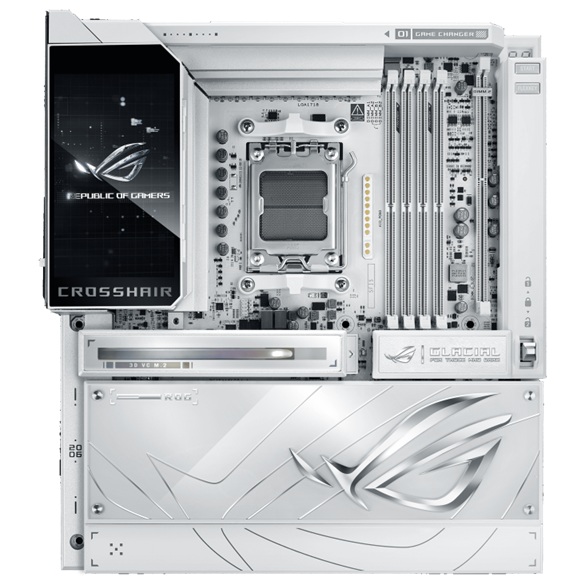

ASUS AMD ROG CROSSHAIR X870E GLACIAL, AM5, X870E, DDR5 256GB, PCIe 5.0, 7x M.2, Wi-Fi 7, Dual 10GbE, USB4, E-ATX, 2yr wty

ASUS AMD ROG CROSSHAIR X870E GLACIAL, AM5, X870E, DDR5 256GB, PCIe 5.0, 7x M.2, Wi-Fi 7, Dual 10GbE, USB4, E-ATX, 2yr wty

SPECIFICATION
Model
ROG CROSSHAIR X870E GLACIAL

CPU
AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors*
* Refer to https://www.asus.com/support/download-center/ for CPU support list.

Chipset
AMD X870E

Memory
4 x DIMM slots, max. 256GB, DDR5
Supports up to
8600+MT/s(OC)**/8200+MT/s(OC)*** with Ryzen™ 9000 Series Processors,
9600+MT/s(OC)**/9200+MT/s(OC)*** with Ryzen™ 8000 Series Processors,
8000+MT/s(OC)**/8000+MT/s(OC)*** with Ryzen™ 7000 Series Processors,
ECC and Non-ECC, Un-buffered DIMM*
Dual Channel Memory Architecture
Supports AMD Extended Profiles for Overclocking (EXPO™)
Supports DIMM Fit and DIMM Fit Pro
ASUS Enhanced Memory Profile (AEMP)
NitroPath DRAM Technology
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. Adjustments will be made based on the specifications of mass-produced memory products available on the market.
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
** Max Manual Overclocking: Achievable with advanced BIOS configuration and potentially specialized hardware. Passed AIDA64 memory benchmark at this frequency, verifying read/write bandwidth. Results may vary according to system components.
*** XMP/EXPO/AEMP Profiles: Rated memory module speeds require setting the BIOS perormance profile. Results may vary according to system components and can be impacted when four DIMM slots are used. For XMP/EXPO/AEMP profile settings, please visit https://rog.asus.com/support/faq/1042256/

Graphics
2 x USB4® (40Gbps) ports support USB Type-C® display outputs**
* Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
** Supports max. 4K@60Hz as specified in DisplayPort 1.4a
*** The display function of the Type-C® port depends on the resolution supported by your processor or graphics card. For more details, please refer to the product manual.

Expansion Slots
AMD Ryzen™ 9000 & 7000 Series Desktop Processors*
AMD Ryzen™ 8700 & 8600 & 8400 Series Desktop Processors*
AMD Ryzen™ 8500 & 8300 Series Desktop Processors*

Storage
Supports up to 7 x M.2 slots and 4 x SATA 6Gb/s ports
AMD Ryzen™ 9000 & 7000 Series Desktop Processors*
AMD Ryzen™ 8700 & 8600 & 8400 Series Desktop Processors*
AMD Ryzen™ 8500 & 8300 Series Desktop Processors*
AMD X870E Chipset
ASMedia ASM1162 Controller

RAID Support
AMD RAIDXpert2 Technology
Ryzen™ 9000 & 8000 & 7000 Series Processors: RAID 0/1/5/10*
*SATA ports from ASM1162 cannot support RAID

Ethernet
2 x Realtek 10Gb Ethernet
ASUS LANGuard

Wireless & Bluetooth
Wi-Fi 7 (MediaTek MT7927)
2×2 Wi-Fi 7* (802.11be)
Supports 2.4/5/6GHz frequency band**
Supports Wi-Fi 7 320MHz bandwidth
Bluetooth® v5.4 (support LE Audio)***

*Wi-Fi features may vary depending on the operating system.

USB
Rear USB (Total 14 ports)
Front USB (Total 12 ports)

BIOS
2 x 64 MB (512Mb)
Flash ROM, UEFI AMI BIOS

Operating System
Windows® 11

Form Factor
E-ATX Form Factor
12 inch x 10.9 inch (30.5 cm x 27.7 cm)

More Information

Manufacturer

ASUS

Warranty

36

Optional Accessories

Available exclusively from Go Tech Deals – Melbourne-based tech retailer offering fast Australia-wide delivery
