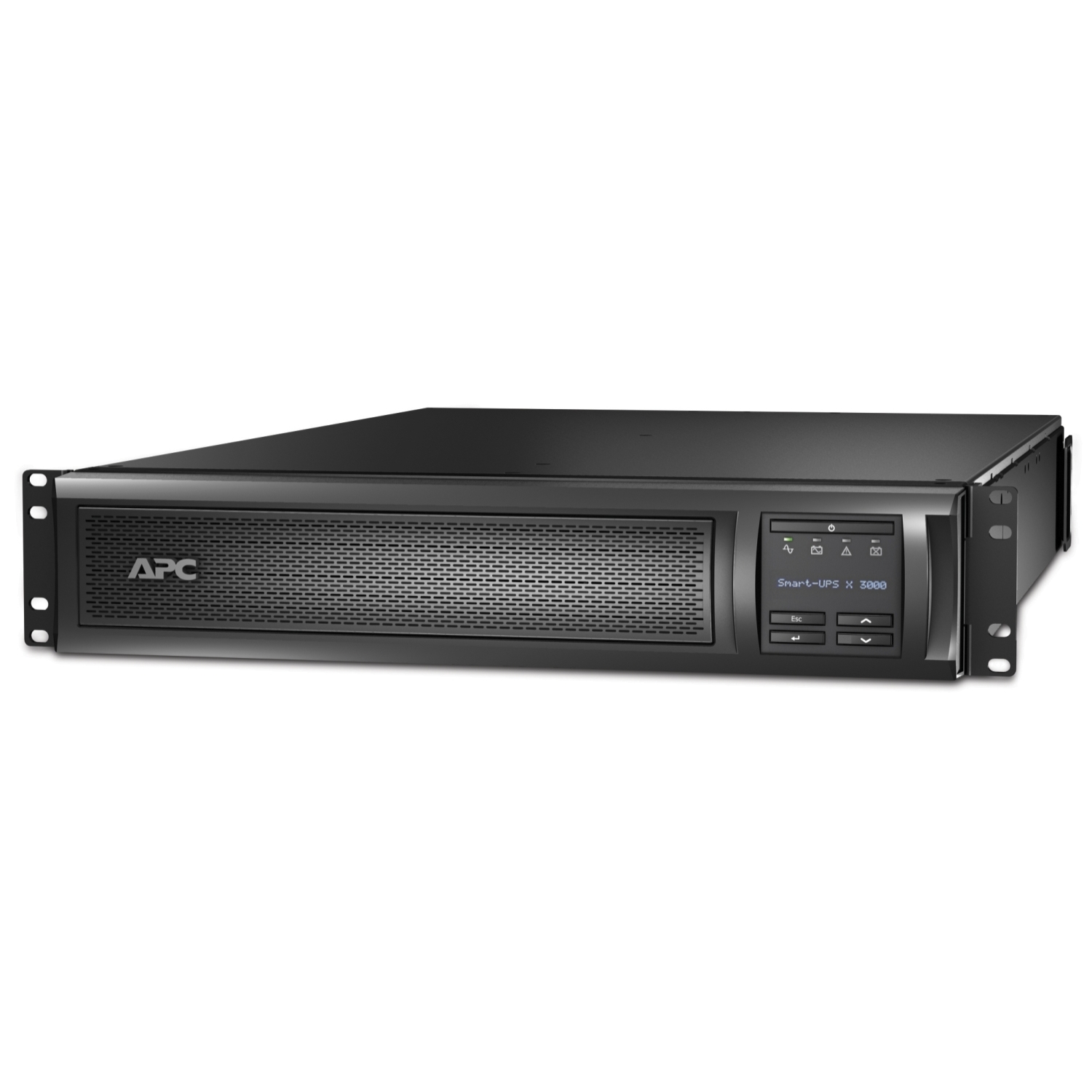

Apc Smart-ups X 3000va/2700w

APC Smart-UPS X, Line Interactive, 3kVA, Rack/tower convertible 2U, 208V-230V, 8x C13+1x C19 IEC, SmartSlot, Extended runtime

Protect servers, switches, networking devices, and point-of-sale equipment with the APC Smart-UPS X 3000VA. APC Smart-UPS provide backup battery power during power outages and continuously safeguard devices from fluctuating power conditions and surges. With premium protection and simplified management, the 3000VA UPS ensures consistent and reliable connectivity at the most critical moments. With 11 outlets with 2 switched outlet groups and a compatibility with external battery packs, this server UPS provides uninterrupted and scalable battery power to connected electronics.
Main Input Voltage 208 V 230 V
Other Input Voltage 220 V 240 V
Main Output Voltage 230 V
Other Output Voltage 208 V 220 V 240 V
Rated power in W 2700 W
Rated power in VA 3000 VA
Input Connection Type IEC 320 C20
Schuko CEE 7 / EU1-16P BS1363A British
Output connection type 8 IEC 320 C13, 2 IEC Jumpers, 1 IEC 320 C19
Number of rack unit 2U
Cable length 1.83 m
Number of cables 1
Battery type Lead-acid battery
Provided equipment- CD with software, Documentation CD, Smart UPS signalling RS-232 cable, User manual, USB cable, Rack mounting brackets
Acoustic level 55 dBA
Heat dissipation 184 Btu/h
Operating altitude 0…10000 ft
Ambient air temperature for operation 0…40 °C
Ambient air temperature for storage -15…45 °C
Storage altitude 0.00…15240.00 m
Relative humidity 0…95 %
Storage Relative Humidity 0…95 %

Mounting mode- Rack mounted
Replacement Battery -APCRBC117
Compatible Service bypass panels- SBP3000RMHW, SBP3000RMI, SBP5000RMI2U
Compatible PDU- AP8702R-WW, AP8702S-WW, AP8702S-WWX340, AP8702S-WWX590, AP8704R-WW
Compatible Racks- ACF127, AP5717, AP5719, AP5808, AP5816
Compatible Sensors- AP9335T, AP9335TH
Compatible NMC – AP9613, AP9620, AP9640, AP9641, AP9643, AP9810
Compatible Mounting- AP9625, AR201, NBAC0302

More Information

Manufacturer

APC

Warranty

36

Product Information

Datasheet

Optional Accessories

UPAPC-AP9613, UPAPCSMX120RMBP, UPAPCRBC117, UPAPC-AP9625, UPAPC-AP9640, UPAPC-AP9641
