Antec Orbit 120 ARGB 3PK, Extreme Lighting 4 sides Mirror inward Effect, PWM, 28MM Thickness Focus Airflow 66.72 CFM, FDB 9 Blades. Woven cable Fan

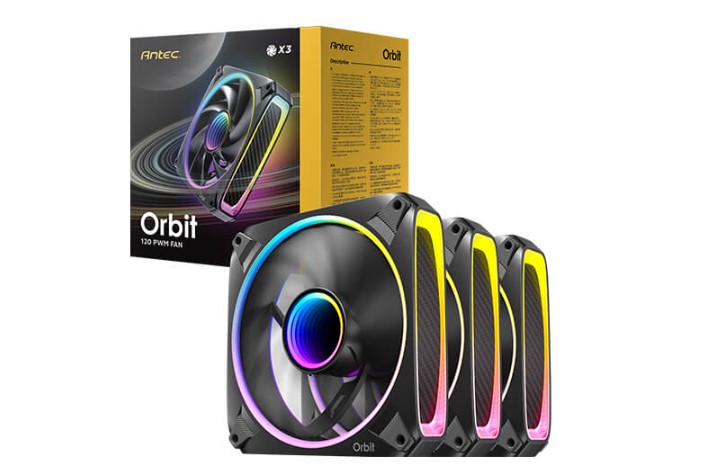

Antec Orbit 120 ARGB 3PK

9 Fan Blade design
The 9-blade design increases airflow,
providing better cooling performance.

Fluid Dynamic Bearing
forLonger Life and
Reduced Noise
FDB bearing achieves optimal longevity while also enhancing anti-vibration, ensuring quieter and more stable operation.

COOLING PERFORMANCE > 66.72 CFM, Air Pressure 2.06, Noise Level 31 dB(A), 2000 RPM

Vibration-Absorbing
Anti-Noise Pads
Equipped with 8 rubber pads, effectively absorbing vibrations and minimizing noise. Also features diagonal patterns, ensuring a cohesive overall design.

3Pin 5V, 4PIn PWM woven Cable + 1 to 3 Splitter cable

SPECIFICATIONS
Fan
Model Name Orbit 120 ARGB
Fan Type ARGB Fan
Dimensions 120*120*28 mm
Bearing Type FDB
Fan Speed 200-2000 ±10% RPM
Airflow 0.48-66.72±5% CFM
Air Pressure 0.02-2.06±5% mmH₂O
Fan Noise Level 18-31±5% dB(A)
Lifespan 50,000 hours / 40℃
Connector FAN: 4-pin | LED: 3-pin
Rated Voltage FAN: DC 12 V | LED: DC 5 V
Operation Voltage FAN: DC 6.0-13.2 V | LED: DC 3.7-5.5 V
Rated Current FAN: 0.35 A | LED: 1 A
