Alloy Scr460sc-3 Rs-232/422

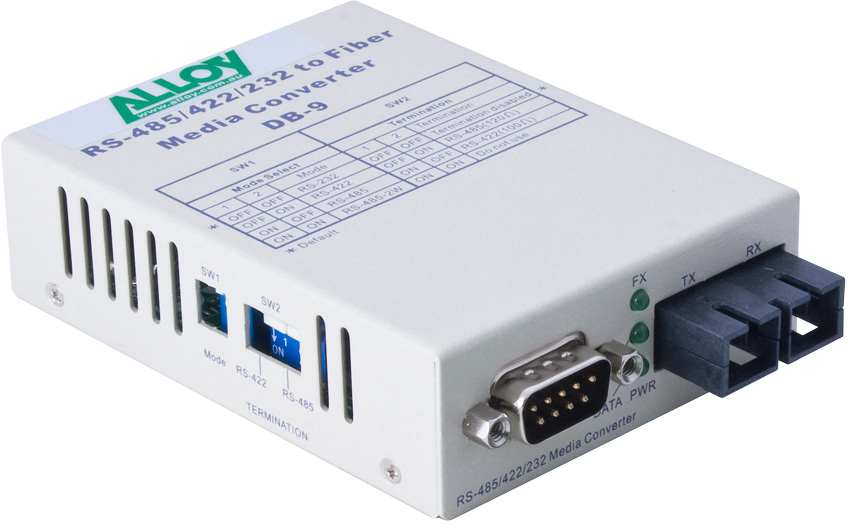

Alloy SCR460SC-3 Serial to Fibre Standalone/Rack Converter

The SCR460SC-3, an SCR Series Media Converter, is used standalone or installed in a DCR12 Series Converter Chassis. This RS232/422/485 Serial to Fibre Converter has a DB-9 port and a SC terminated singlemode fibre port with a range of up to 20Km.

Features:

SCR460SC-3 Converter: RS-232/422/485 DB-9 serial (DB-9) to serial over singlemode fibre (SC) – 20Km range
SCR Series Converters for all types of serial over fibre media conversion – up to 20Km range
DB-9 or Terminal Block options for copper serial cabling, ST or SC fibre connectors
Triple mode circuit support for Plug-and-play RS-232triple mode circuit RS-232/RS-422/RS-485, RS-422 or RS-485
Auto baud rate (up to 460.8K) and Direction Control functions
High EMI and EMS immunity
Dual Purpose ACR Series – use ‘standalone’ or install in a DCR12 Series Media Converter Chassis
Easy ‘Slide-in, Hot Swap’ installation into DCR12 Media Converter Chassis systems
Compact, rugged all-metal case

More Information

Manufacturer

Alloy

Warranty

36

Product Information

Datasheet

Optional Accessories
