Alloy Scr460sc-1 Rs-232/422

Alloy
Availability:

1 in stock


Alloy SCR460SC-1 RS-232/422/485 Serial DB-9 to Multimode Fibre Converter. Max. range 2Km

$315 $328 inc GST

1 in stock

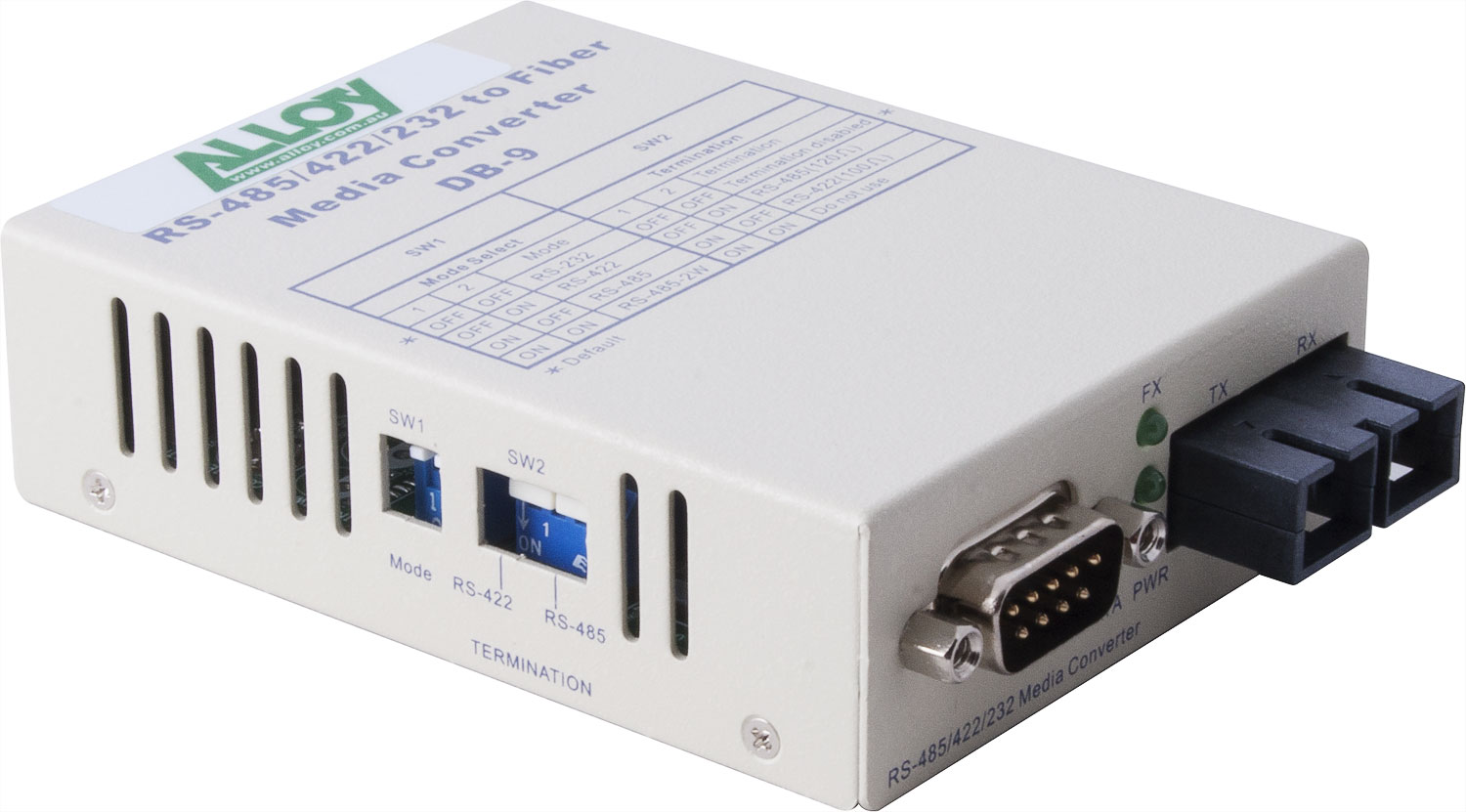

Alloy SCR460SC-1 Serial to Fibre Standalone/Rack Converter

The SCR460SC-1, an SCR Series Media Converter, is used standalone or installed in a DCR12 Series Converter Chassis. This RS232/422/485 Serial to Fibre Converter has a DB-9 port and a SC terminated multimode fibre port with a range of up to 2Km.

The SCR460SC-1 is a dual purpose Serial over Fibre Media Converter. It can be used as a standalone device, or can be installed as a Media Converter Module into any Alloy DCR12 Series 12-slot Media Converter Rackmount Chassis. The SCR460SC-1 has one triple mode circuit RS-232/RS-422/RS-485 Serial DB-9 copper port and an SC terminated multimode fibre port, enabling the Converter to extend data and control signaling over a fibre cable segment up to a maximum range of 2 kilometres. With auto baud rate (up to 460.8K) and direction control functions, the Converter automatically detects serial signal characteristics to operate automatically in RS-232, RS-422 or RS-485 mode.

Features:

SCR460SC-1 Converter: RS-232/422/485 DB-9 serial (DB-9) to serial over multimode fibre (SC) – 2Km range
SCR Series Converters for all types of serial over fibre media conversion – up to 20Km range
DB-9 or Terminal Block options for copper serial cabling, ST or SC fibre connectors
Triple mode circuit support for Plug-and-play RS-232triple mode circuit RS-232/RS-422/RS-485, RS-422 or RS-485
Auto baud rate (up to 460.8K) and Direction Control functions
High EMI and EMS immunity
Dual Purpose ACR Series – use ‘standalone’ or install in a DCR12 Series Media Converter Chassis
Easy ‘Slide-in, Hot Swap’ installation into DCR12 Media Converter Chassis systems
Compact, rugged all-metal case



More Information

Manufacturer

Alloy

Warranty

36

Product Information

Datasheet

Optional Accessories



SKU: SCR460SC-1 Categories: , Tag:
